"Orbitron 3.71" + "My DDE Client 1.05" + "SDR# v1.0.0.1000"

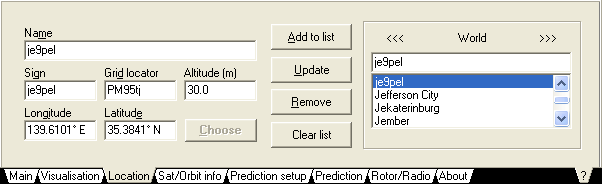

Edit "25544.txt" in "Orbitron - Notes" folder for the example of ISS.
File name is the NORAD number. Edit on the basis of 00000.txt for a new satellite.
DDE

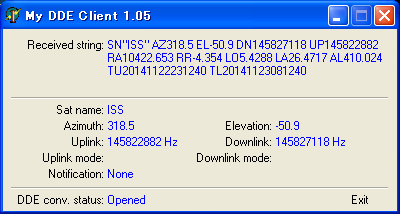

Download "My DDE Client 1.05" on http://www.stoff.pl/downloads.php

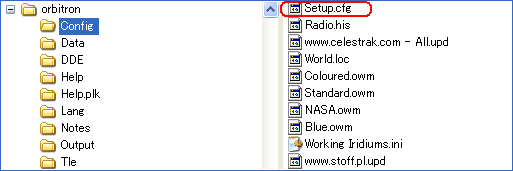

Add the following two lines to the bottom of "Setup.cfg" in "Orbitron - Config" forder.
See [Supplement4] at the bottom.
[Drivers]
MyDDE=C:\Program Files\orbitron\mydde\MyDDE.exe
SDRSharp=SDRSharp.exe
SDR#
Download SDR#(Plugin) "Satellite Tracker" on http://www.rtl-sdr.com/sdrsharp-plugins/

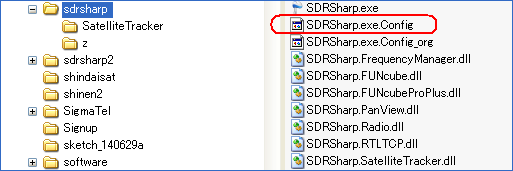

Add the following a line to the bottom of "SDRSharp.exe.Config" in SDR# forder.
Add into "Plugins.xml" in case of SDR# updated version.
<sharpPlugins>
<add key="SatelliteTracker" value="SDRSharp.SatelliteTracker.SatelliteTrackerPlugin,SDRSharp.SatelliteTracker" />
[Supplement1] How to install SDR#
http://www.ne.jp/asahi/hamradio/je9pel/fundong4.htm#sdrs
[Supplement2] SDR# PPM settings
How to set Shift Value related to My_FCD, please see My_HP fcd1
Orbitron + DDE + SDR#(Plugin) System:

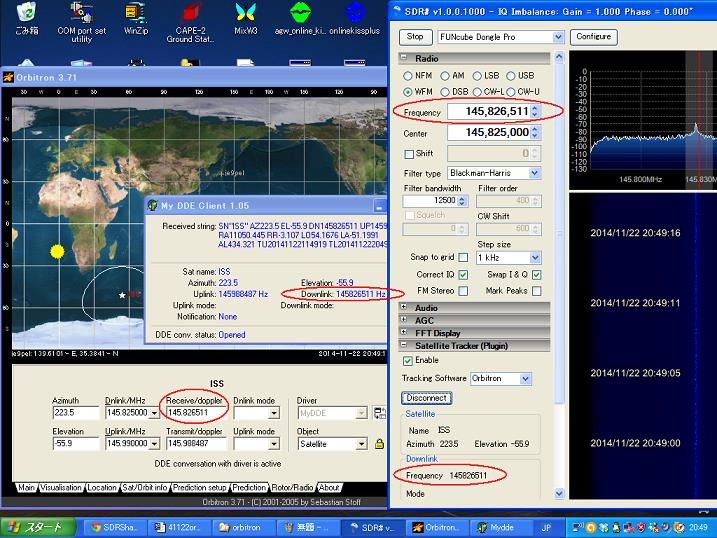

Orbitron -> Select Satellite -> Run DDE Driver -> SDR# Center -> SDR# Play
-> SDR# Shift -> Satellite Tracker(Plugin) -> Enable, Orbitron, Connect
Procedure:
(1) Confirm the satellite frequency. satslist.htm
(2) Input this frequency into my sdrtofcd.xls or sdrtocal.xls
sdrtofcd.xls, sdrtocal.xls
(3) Shift value in sdrtofcd.xls is the correction value of the
individual differneces of my FCD.

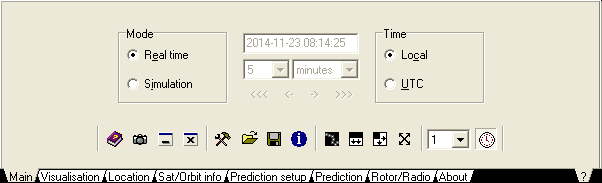

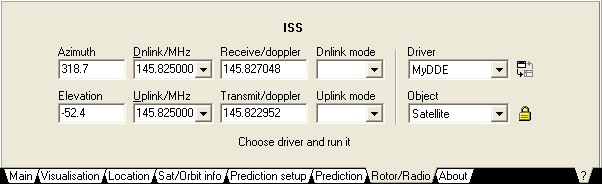

(4) Run Orbitron -> Select Satellite -> Click Rotor/Radio tab.
-> Click on the square button on the right side of Driver box.
-> DDE Client will start automatically.
(5) Run SDR#
-> Input the center value of sdrtofcd.xls to SDR# Center box.
(6) Play SDR#
-> Input the Shift value of sdrtofcd.xls to SDR# Shift box.

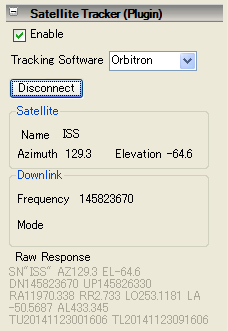

(7) SDR#Satellite Tracker(Plugin) -> Click Enable.
-> Select Orbitron in Tracking Software box -> Click Connect.
(8) There is no need to imput Shift value if you imput PPM value
in "SDR # - Configure - Frequency correction (ppm)". -> fcd2
[Supplement3] Satellite Tracker

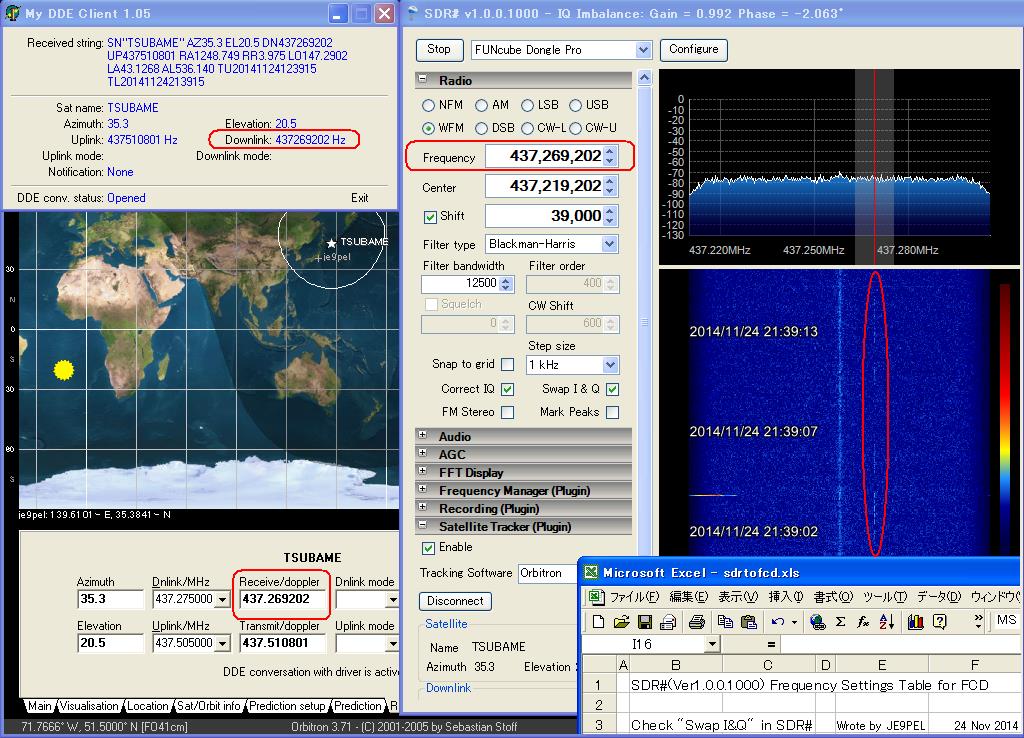

TSUBAME, 12:32-12:43 UTC, 24 Nov 2014, Ele 27 SE-E-N, 437.275MHz CW

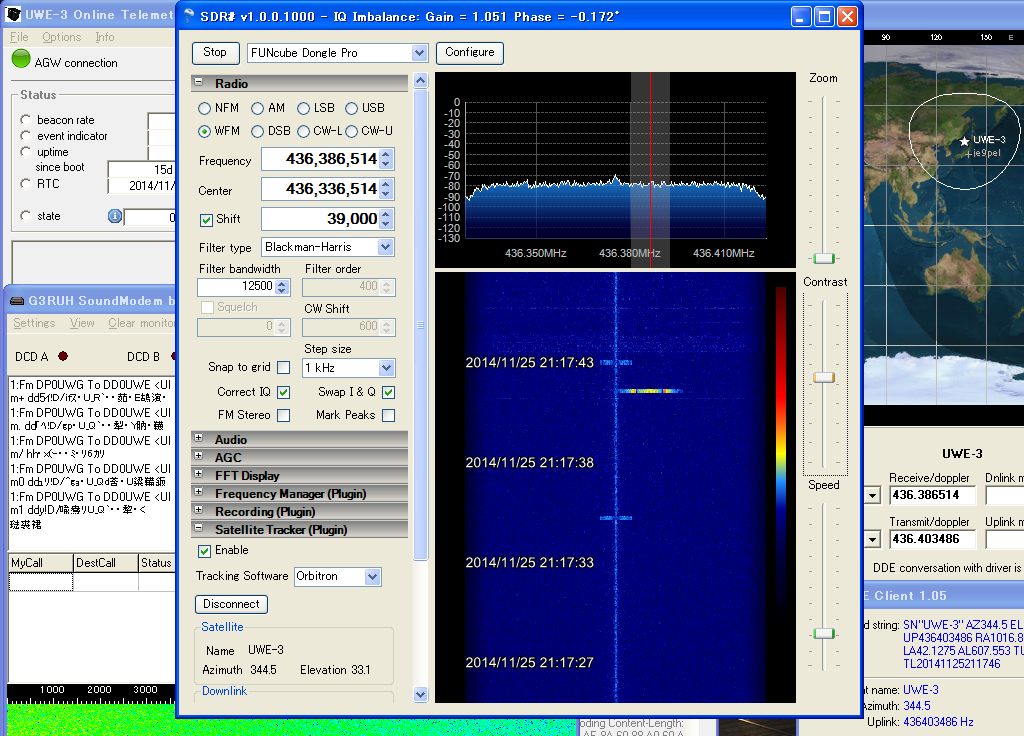

UWE-3, 12:09-12:22 UTC, 25 Nov 2014, Ele 80 S-W-N, 436.395MHz 9600bps GMSK

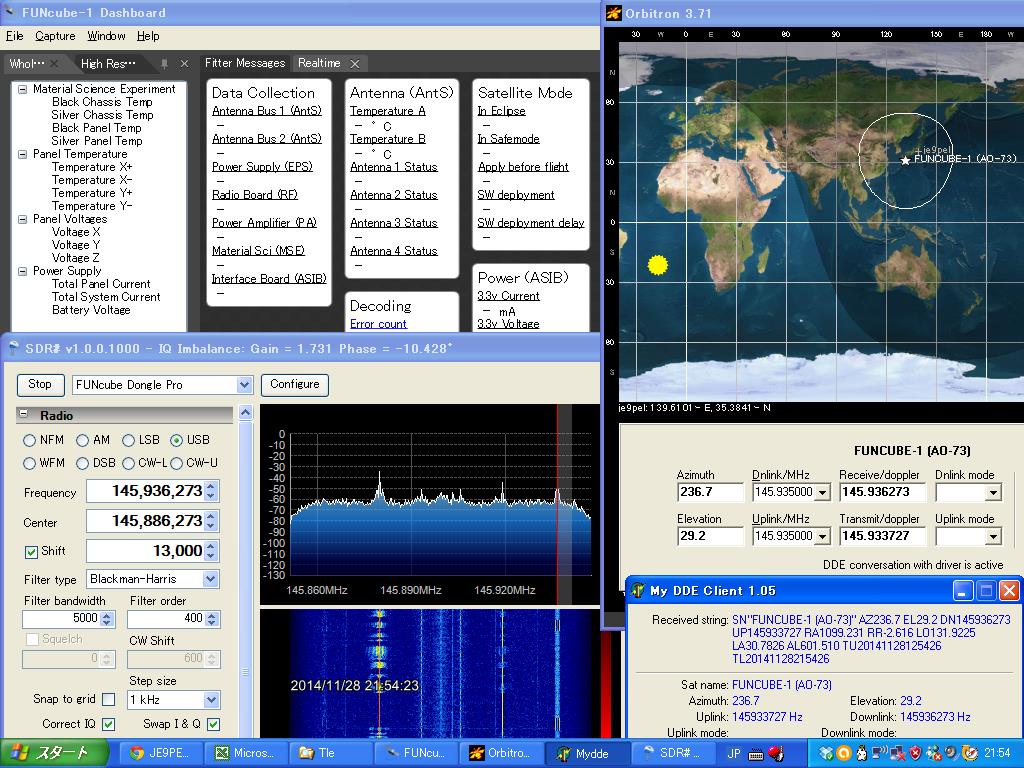

AO-73, 12:49-13:01 UTC, 28 Nov 2014, Ele 32 S-W-WN, 145.935MHz 1200bps BPSK

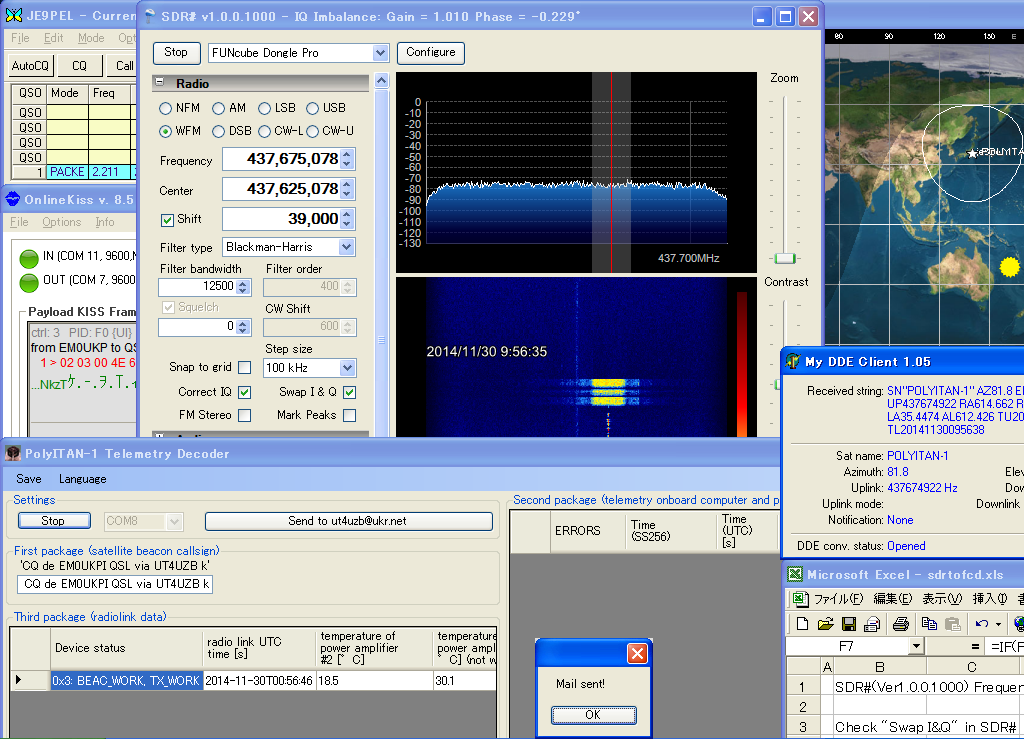

PolyITAN-1, 00:50-01:02 UTC, 30 Nov 2014, Ele 83 S-Z-N, 437.675MHz 9600bps 2FSK/CW
FUNcube-2 perfect automatically operation
FCDPro + Orbitron + DDE + SDR# + Dashboard

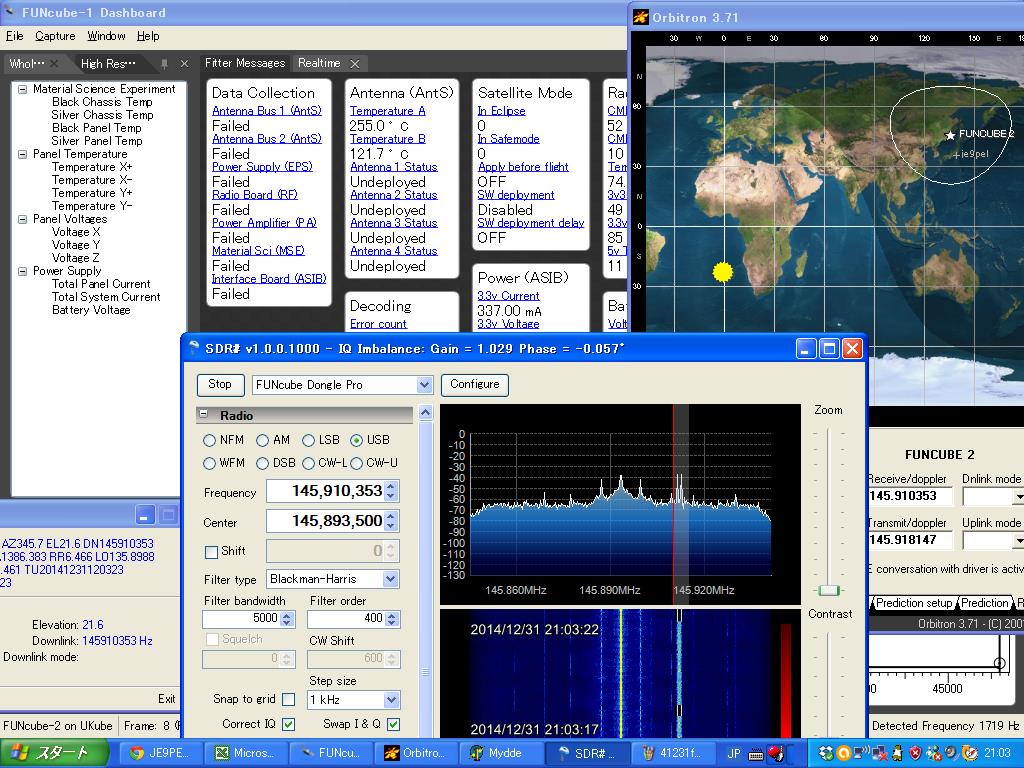

11:54-12:07 UTC, 31 Dec 2014, Ele 86 S-Z-N, 145.915MHz 1200bps BPSK
SDR#(ver1.0.0.1000)
Center: 145,893,500(=145.9135MHz-20kHz)
PPM: -111(=-21-90=InitialValue + MyPPM)
Shift: 0
Filter bandwidth: 5000
Correct IQ: Check
Swap I & Q: Check
SatelliteTracker: ON
QB50p1/FUNcube-3(EO-79) telemetry

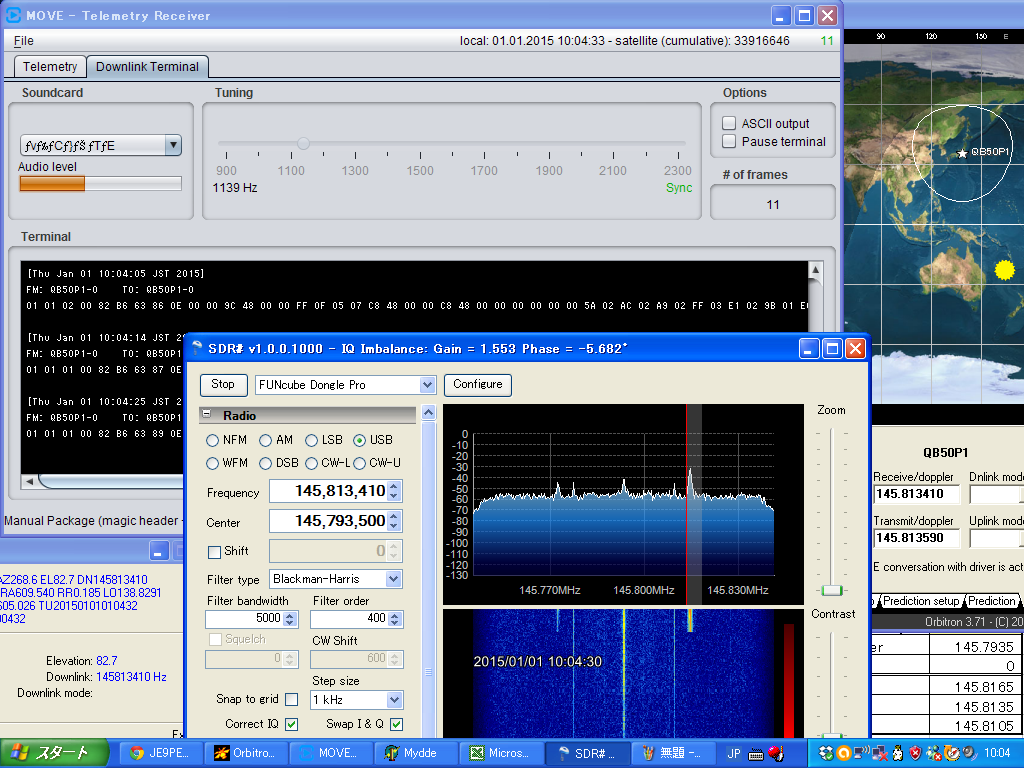

00:58-01:10 UTC, 1 Jan 2015, Ele 82 S-Z-N, 145.815MHz 1200bps BPSK
FCDPro + Orbitron + DDE + SDR# + SatelliteTracker + MoveTelemetryReceiver
[Supplement4] SDR# DDETracker
1. Orbitron - Setup.cfg in Config forder - Confirm in [Drivers]
MyDDE=C:\Program Files\orbitron\mydde\MyDDE.exe
SDRSharp=SDRSharp.exe
2. Download DDETrackerV4Binaries.zip
http://www.satsignal.eu/software/DDETracker.html
3. Add into Plugins.xml
<add key="DDE Tracking Client" value="SDRSharp.DDETracker.DdeTrackingPlugin,SDRSharp.DDETracker" />
4. Run Orbitron - Sellect Satellite

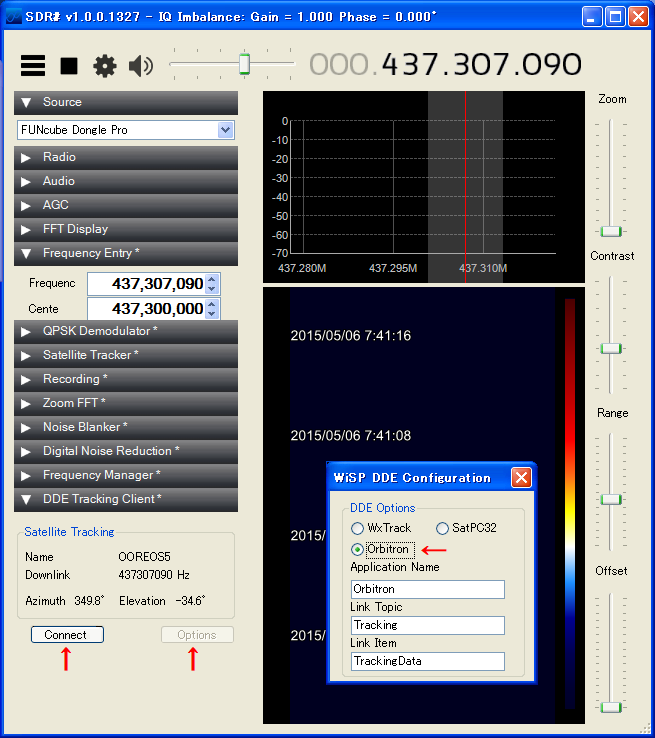

5. SDR# Start - "DDE Tracking Client" - Option - Check Orbitron
and "DDE Tracking Client" - Connect
6. Run DDE in Orbitron
7. SDR# frequency starts to move.
DDE
Download "My DDE Client 1.05" on http://www.stoff.pl/downloads.php
Add the following two lines to the bottom of "Setup.cfg" in "Orbitron - Config" forder.
See [Supplement4] at the bottom.
[Drivers]
MyDDE=C:\Program Files\orbitron\mydde\MyDDE.exe
SDRSharp=SDRSharp.exe
SDR#
Download SDR#(Plugin) "Satellite Tracker" on http://www.rtl-sdr.com/sdrsharp-plugins/
Add the following a line to the bottom of "SDRSharp.exe.Config" in SDR# forder.
Add into "Plugins.xml" in case of SDR# updated version.
<sharpPlugins>
<add key="SatelliteTracker" value="SDRSharp.SatelliteTracker.SatelliteTrackerPlugin,SDRSharp.SatelliteTracker" />
[Supplement1] How to install SDR#
http://www.ne.jp/asahi/hamradio/je9pel/fundong4.htm#sdrs
[Supplement2] SDR# PPM settings
How to set Shift Value related to My_FCD, please see My_HP fcd1
Orbitron + DDE + SDR#(Plugin) System:
Orbitron -> Select Satellite -> Run DDE Driver -> SDR# Center -> SDR# Play
-> SDR# Shift -> Satellite Tracker(Plugin) -> Enable, Orbitron, Connect
Procedure:
(1) Confirm the satellite frequency. satslist.htm
(2) Input this frequency into my sdrtofcd.xls or sdrtocal.xls
sdrtofcd.xls, sdrtocal.xls
(3) Shift value in sdrtofcd.xls is the correction value of the
individual differneces of my FCD.
(4) Run Orbitron -> Select Satellite -> Click Rotor/Radio tab.
-> Click on the square button on the right side of Driver box.
-> DDE Client will start automatically.
(5) Run SDR#
-> Input the center value of sdrtofcd.xls to SDR# Center box.
(6) Play SDR#
-> Input the Shift value of sdrtofcd.xls to SDR# Shift box.
(7) SDR#Satellite Tracker(Plugin) -> Click Enable.
-> Select Orbitron in Tracking Software box -> Click Connect.
(8) There is no need to imput Shift value if you imput PPM value
in "SDR # - Configure - Frequency correction (ppm)". -> fcd2
[Supplement3] Satellite Tracker
TSUBAME, 12:32-12:43 UTC, 24 Nov 2014, Ele 27 SE-E-N, 437.275MHz CW
UWE-3, 12:09-12:22 UTC, 25 Nov 2014, Ele 80 S-W-N, 436.395MHz 9600bps GMSK
AO-73, 12:49-13:01 UTC, 28 Nov 2014, Ele 32 S-W-WN, 145.935MHz 1200bps BPSK
PolyITAN-1, 00:50-01:02 UTC, 30 Nov 2014, Ele 83 S-Z-N, 437.675MHz 9600bps 2FSK/CW
FUNcube-2 perfect automatically operation
FCDPro + Orbitron + DDE + SDR# + Dashboard
11:54-12:07 UTC, 31 Dec 2014, Ele 86 S-Z-N, 145.915MHz 1200bps BPSK
SDR#(ver1.0.0.1000)
Center: 145,893,500(=145.9135MHz-20kHz)
PPM: -111(=-21-90=InitialValue + MyPPM)
Shift: 0
Filter bandwidth: 5000
Correct IQ: Check
Swap I & Q: Check
SatelliteTracker: ON
QB50p1/FUNcube-3(EO-79) telemetry
00:58-01:10 UTC, 1 Jan 2015, Ele 82 S-Z-N, 145.815MHz 1200bps BPSK
FCDPro + Orbitron + DDE + SDR# + SatelliteTracker + MoveTelemetryReceiver
[Supplement4] SDR# DDETracker
1. Orbitron - Setup.cfg in Config forder - Confirm in [Drivers]
MyDDE=C:\Program Files\orbitron\mydde\MyDDE.exe
SDRSharp=SDRSharp.exe
2. Download DDETrackerV4Binaries.zip
http://www.satsignal.eu/software/DDETracker.html
3. Add into Plugins.xml
<add key="DDE Tracking Client" value="SDRSharp.DDETracker.DdeTrackingPlugin,SDRSharp.DDETracker" />
4. Run Orbitron - Sellect Satellite
5. SDR# Start - "DDE Tracking Client" - Option - Check Orbitron
and "DDE Tracking Client" - Connect
6. Run DDE in Orbitron
7. SDR# frequency starts to move.
