CubeBug-2, Triton-1, UWE-3, First-MOVE, GOMX-1
VELOX-P2, CAPE-2, KySat-2, Eagle-2($50SAT)Delfi-n3Xt, ArduSat-X, PhoneSat2.4
Vermont Lunar, FUNcube-1, ZACube-1
NASA ELaNa NanoSats were launched on 20 Nov 2013, and UniSat-5 related Satellites
were launched on 21 Nov 2013. I, JE9PEL will post here the First Decoded data by
myself in the order of date and time.
http://www.ne.jp/asahi/hamradio/je9pel/minotaur.htm
http://www.ne.jp/asahi/hamradio/je9pel/unisat5s.htm
CubeBug-2, 00332U 00332A ( -> 39440U 13066AA)
Ministry of Science, Technology & Productive Innovation, Argentina
12:59-13:12 UTC, 24 Nov 2013, Ele 61 S-W-WN, 437.445MHz 9600bps FSK
CUBEB2-6>CQ [11/24/13 22:11:43] <UI R>: .....
Triton-1, 39427U 13066M
ISIS-BV (Innovative Solutions In Space BV), Netherlands
12:03-12:16 UTC, 30 Nov 2013, Ele 36 SE-E-N, 145.822MHz 1200bps BPSK
TRIV0>TRIV0,x-12,sl-3 [11/30/13 21:09:12] <????>
UWE-3, 39439U 13066Z ( -> 39446U 13066AG)
University of Wuerzburg, Germany
00:06-00:15 UTC, 1 Dec 2013, Ele 9 NE-E-ES, 437.385MHz 9600bps GMSK
DP0UWG>DD0UWE [12/01/13 09:12:55]: .....
01:00-01:13 UTC, 18 May 2014, Ele 69 N-E-S, 436.395MHz 9600bps FSK
http://213.188.119.203:777/query.html
First-MOVE, 39438U 13066Y ( -> 39439U 13066Z)
Technical University of Munchen, Germany
01:42-01:54 UTC, 1 Dec 2013, Ele 58 N-W-WS, 145.970MHz 1200bps BPSK,CW
Move Telemetry Receiver
First-MOVE using MixW
05:28:04 MOVE1/-6*/"b0b>LRT1>I12,?,04 (1200 baud):
_.!.H.4....."_.._dA_ _*.....d"* _Sr.@....fa@3.P#_"60......
"How to decode First-MOVE using MixW" is the method JA0CAW has done previously.
(1) Set the properties of Windows_XP in advance as follows.
Start - Settings - Control Panel - Sound and Audio Devices
- Voice - Recording sound - Volume - Check Wave or Monaural Mixer
(2) MixW - Mode - Packet - ModeSettings - Modem - VHF1200baud(satellite PSK)
(3) MixW - Mode - Packet - ModeSettings - General
- Check "Emulate KISS TNC on TNC emulation port"
(4) Verify the setting in MixW - Configure - TNC_emulation - Serial_port.
(5) Make the playback of the wav file that you received previously saved.
(6) Perform further the following steps, although you can be decoded here usually.
(7) Click on the small red flag in the waterfall of MixW while pressing Ctrl_key,
then the window "RX (1)-PACKET" will be poped up automatically.
(8) Drag a few millimeter the left or right the small red flag in the waterfall
of MixW while pressing Ctrl_key, so as to sandwich in the band of the red flag
the stripe representing the playback sound.
(9) Make the playback of the wav file while adjusting like this, then the data are
decoded in the pop-up window. Timestamp is the time when you playback it.
(10)In the reception of real-time decoding, it's displayed on the normal window of
MixW as shown in the figure below, not in the pop-up window. The figure below
shows a state of the realtime collaboration "MOVE Telemetry Receiver + MixW".
(11)"MOVE Telemetry Receiver" is necessary to install the Java 6 in advance.
GOMX-1, 39430U 13066Q
GomSpace Aps, Denmark
12:26-12:40 UTC, 1 Dec 2013, Ele 66 S-E-N, 437.250MHz 4800bps MSK
Transmitting every 10 seconds exactly
VELOX-P2, 39439U 13066Z ( -> 39438U 13066Y)
Nanyang Techonological University, Singapore
12:36-12:50 UTC, 1 Dec 2013, Ele 77 S-E-N, 145.980MHz CW
VELOXP GZ8D8CGD22222
CAPE-2, 39380U 13064A ( -> 39382U 13064C)
University of Louisiana at Lafayette, USA
05:58-06:10 UTC, 3 Dec 2013, Ele 63 NW-S-SE, 145.825MHz
CW -> Voice -> Packet
http://www.ne.jp/asahi/hamradio/je9pel/31203ca2.mp3
http://www.ne.jp/asahi/hamradio/je9pel/31203ca3.mp3
CAPE-2 VOICE via Darth Vader
2013-064C 39382U 13064C, 145.822MHz
http://www.qsl.net/py4zbz/cape.htm#d
http://www.qsl.net/py4zbz/DWpy4zbz.wav
Hello papa yankee four zulu bravo zulu
(Hello PY4ZBZ)
KySat-2, 39382U 13064C ( -> 39384U 13064E)
Kentucky Space LLC, University of Kentucky and Morehead University
23:07-23:19 UTC, 7 Dec 2013, Ele 82 SW-N-NE, 437.405MHz 9600bps FSK
TNC KISS_ON (interval 18 seconds)
KySat-2 Software COM port
KySat-2 GSW_HAM v2.1 Changelog:
- The custom COM port is useful if your virtual COM port doesn't show up
in our list. You have to type the full port along with the word "COM",
so the full thing would be "COM12". Once entering this name,
click "Refresh" and your port should appear.
- Currently the Custom COM port option is not a save-able setting,
but we will add that in the next week after our finals are over.
Eagle-2($50SAT), 39436U 13066W
Morehead State University, USA
00:36-00:47 UTC, 8 Dec 2013, Ele 21 NE-E-ES, 437.505MHz RTTY
http://www.ne.jp/asahi/hamradio/je9pel/31208ea2.mp3
$$$$$50SAT,128,,258,,.59,-,,:1,135.<5,,922.88,3723,*7D
FLDIGI, OpMode-RTTY-Custom
How to decode $50SAT using FLDIGI by DK3WN, 4 Dec 2013
RTTY beacon 15 values (21 bytes) by DK3WN, 4 Dec 2013
$50SAT RTTY received by JA0CAW at 12:14UTC, 5 Dec 2013
ArduSat-X, 39414U 98067DC
USA Nanorack/NanoSatisfi
11:11-11:21 UTC, 23 Dec 2013, Ele 46 NW-S-SE, 437.007MHz CW
http://www.ne.jp/asahi/hamradio/je9pel/31223arx.mp3
WG9XFC-X
PhoneSat2.4, 39381U 13064B
NASA Ames Research Center, USA
13:25-13:35 UTC, 11 Jan 2014, Ele 19 W-S-SE, 437.425MHz 1200bps AFSK
http://www.ne.jp/asahi/hamradio/je9pel/40111ph2.mp3
Delfi-n3Xt, 39428U 13066N
Delft University of Technology, Netherlands
00:41-00:53 UTC, 22 Dec 2013, Ele 29 NE-E-S, 145.870MHz 2400bps BPSK
First Heard 2400bps BPSK, but it don't hear at night.
http://www.ne.jp/asahi/hamradio/je9pel/31222n3x.mp3
01:23-01:38 UTC, 18 Jan 2014, Ele 77 N-W-WS, 145.870MHz 2400bps BPSK
First Decoded using FCD + HDSDR + DUDe
http://www.ne.jp/asahi/hamradio/je9pel/delfn3xt.htm
Vermont Lunar, 39407U 13064AD
Vermont Technical College, USA
http://cubesatlab.org
http://www.vtspacegrant.org/index.php
http://www.vtspacegrant.org/cubesat.php
23:47-23:59 UTC, 29 Mar 2014, Ele 57 WN-N-E, 437.305MHz 9600bps FSK
2014-03-29 23:49:27.490 UTC: [75 Bytes KISS Frame (without CRC)]
1 > 56 65 72 6D 6F 6E 74 4C 75 6E 61 72 00 00 00 04 1B 23 01 F2
21 > 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
41 > 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
VermontLunar.....#. ....................................
FUNcube-1, 39444U 13066AE
AMSAT-NL, Netherlands
00:28-00:40 UTC, 6 Apr 2014, Ele 22 NE-E-ES, 145.935MHz 1200bps BPSK
http://www.ne.jp/asahi/hamradio/je9pel/funcube1.htm

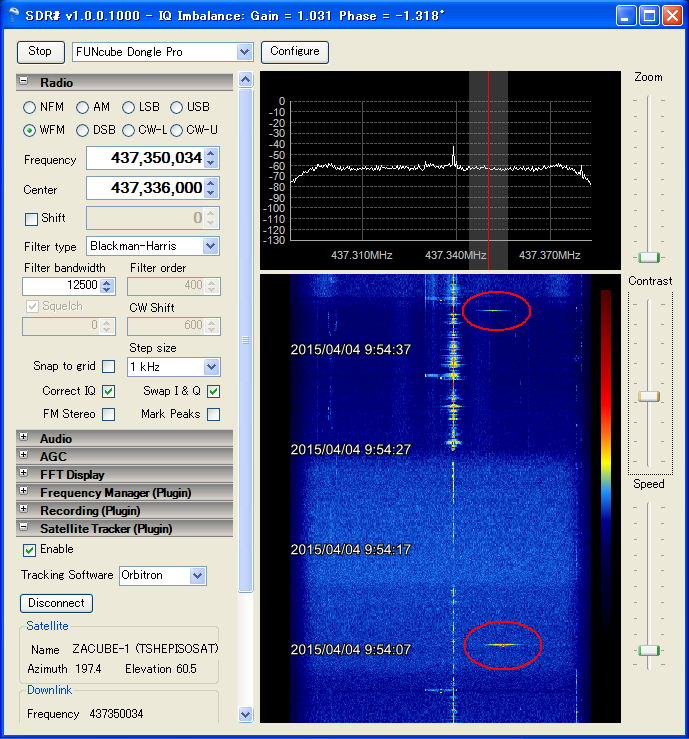

ZACube-1, 39417U 13066B
F'SATI, Cape Peninsula University of Technology, South Africa
00:47-01:00 UTC, 4 Apr 2015, Ele 86 N-Z-S, 437.356MHz 9600bps GMSK
http://www.cput.ac.za/blogs/fsati/zacube-1/
1:Fm 123456 To 012345 <UI C Pid=F0 Len=33> [09:52:59R]
TshepisoSAT.U5....<.
1:Fm 123456 To 012345 <UI C Pid=F0 Len=33> [09:53:33R]
TshepisoSAT.U6,,.<.
1:Fm 123456 To 012345 <UI C Pid=F0 Len=33> [09:54:07R]
TshepisoSAT.U6.,,.<.
1:Fm 123456 To 012345 <UI C Pid=F0 Len=33> [09:54:41R]
TshepisoSAT.U6P,,.<.
Winsock RemoteHost: 127.0.0.1
Winsock RemotePort: 8000
***********************************
*** Connect AGW Packet Engine ***
***********************************
start monitoring using raw frames (KISS Mode)
total number of ports: 1
Port1 with SoundCard Ch: A
2015-04-04 00:54:07.220 UTC: [52 Bytes KISS Frame (without CRC)]
ctrl: 3 PID: F0 {UI} 33 Payload Bytes
from 123456 to 012345:
1 > C0 0C 1D 06 0E 01 00 54 73 68 65 70 69 73 6F 53 41 54 2E 55
21 > 1F 36 2E 2C 0B 15 2C 06 93 2C 3C 2E C0
......TshepisoSAT.U.6.,..,.
___________________________________________________________________
2015-04-04 00:54:41.260 UTC: [52 Bytes KISS Frame (without CRC)]
ctrl: 3 PID: F0 {UI} 33 Payload Bytes
from 123456 to 012345:
1 > C0 0C 1D 06 0E 01 00 54 73 68 65 70 69 73 6F 53 41 54 2E 55
21 > 1F 36 50 2C 0B 15 2C 06 95 2C 3C 2E C0
......TshepisoSAT.U.6P,..,.
___________________________________________________________________
2015-04-04 00:56:42.090 UTC: [9 Bytes KISS Frame (without CRC)]
ctrl: 3 PID: F0 {UI} -10 Payload Bytes
from 123456 to ......:
___________________________________________________________________
