My equipment












                                2400(Loop 29ele)
                                           1200(Loop 32ele)
                                       o   o
        430(Qubical_Quad)    --/--    o   o   --/--  144(Qubical_Quad)
           UQ-141(LAMBDA)   --/--    o   o   --/--   ZQ-81(LAMBDA)
                           --/--    o   o   --/--
                          --/--    o   o   --/--
        Rotator(KR400,500) :       :        :
               (KENPRO)    :       @ Conv.  :
                           :       :(DRAKE) :
        CX500 +-+-+         =======:========        +============+
        CS232 +-+-+                :                ::          ::
  +-+         :   +----------------:                ::          ::
  : :   +------+                   :                ::          ::
  +-+---:      :        +----------------+          ::          ::
  HDD   +------+        :  [   ]     [ ] :          +============+
       /      //        :       O    o o :                ::      :
      +------+          +----------------+            - - - - -   :
     98NOTE-nv            TS-790S  :                    Mebius    :
      (NEC)              (KENWOOD) :                   (SHARP)    :
                                   :                              :
                   +---------+     :     +------+                 :
                   :  TRX4S  :-----#-----:TNC31S:-----#------------
                   +---------+     :     +------+     :  RS-232C
                     (SYMEK)       :     (SYMEK)      :
                                   :                  :
                                 +---+   +------+     :
                                 +---+---:TNC241:------
                                TMB-965  +------+
                                         (TASCO)



[Hardware]

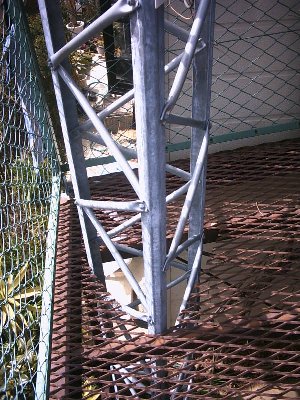

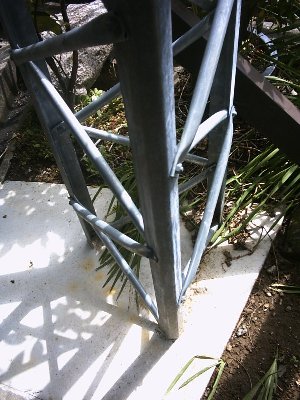

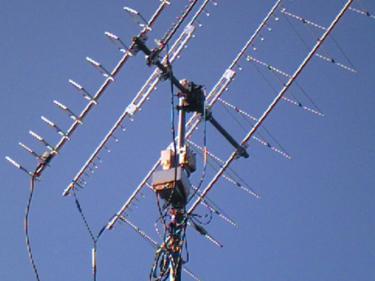

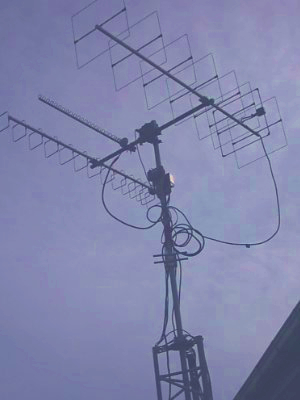

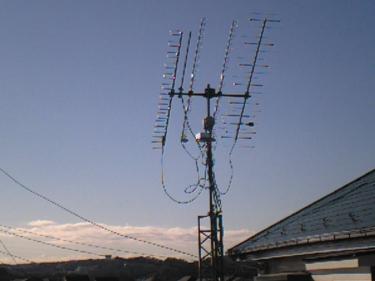

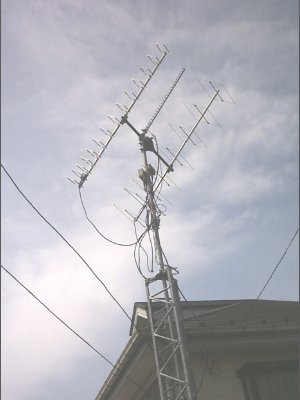

Antn: ZQ-81   (LAMBDA)        , 144 Cubical Quad ( 8ele x 1, 13dBd)
      UQ-141  (LAMBDA)        , 430 Cubical Quad (14ele x 1, 16dBd)
      HGL-1232 (MAKI)         , 1200 Loop (32ele x 2, 24dBi)
      HGL-2429 (MAKI)         , 2400 Loop (29ele x 1, 21dBi)

Rotr: KR400   (KENPRO)        , Rotator (Azimuth)
      KR500A, G-550 (YAESU)   , Rotator (Elevation)
      CS232, CX500  (KENPRO)  , Controler

Amp : GPA-2020 (ANTEN)        , 144  PreAmp (RFgain 20dB)
      GRA-720  (ANTEN)        , 430  PreAmp (RFgain 20dB)
      GT-1200  (MAKI)         , 1200 LinearAmp (2W -> 20W)
      GR-2400  (MAKI)         , 2400 PreAmp (RFgain 23dB)

Conv: 2880 (Drake)            , 2400 -> 144

Rig : TS-790S (KENWOOD)       , 144/430/1200MHz
      TRX4S   (SYMEK)         , 38k4 baud

Comp: Mebius  (SHARP)         , WindowsXP
      WinBook (SOTEC)         , WindowsXP
      PC-9801nv (NEC)         , Note type

TNC : TNC-241, TNC-555 (TASCO), G3RUH type modem
      TNC31S  (SYMEK)         , 38k4 baud


[Software]

Soft: WiSP3215  +-----------------------------------+
                : GSC      2.03     MsgMaker  2.10a :
                : View-Dir 2.00e    ProcMail  2.00g :
                : MSPE     2.01a    MsgView   2.00b :
                : UpdKeps  2.00c                    :
                +-------------------------- --------+

      Exterm V2.0a, Calsat32 V1.4.1
      Satellite Tracking Program_II


[Supplement]

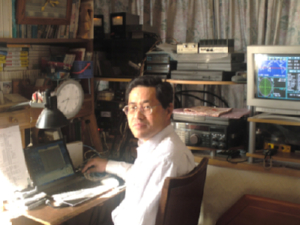

I am using now the equipments as follows for all satellites
such as UO-11, AO-16, LU-19, FO-29, GO-32, NO-44, AO-51, etc.

TS790S (144 / 430) can be used for all mode ie, FM, SSB, CW.
TNC241 can be used for all mode ie, FSK, PSK, RTTY, CW, JAS etc.

In this TNC241, the FSK mode is used for 9600 bps sats such as
GO-32, AO-51 etc. The JAS mode is that AFSK-uplink (Manchester code)
and PSK-downlink, so this is used for 1200 bps sats such as AO-16, FO-29.

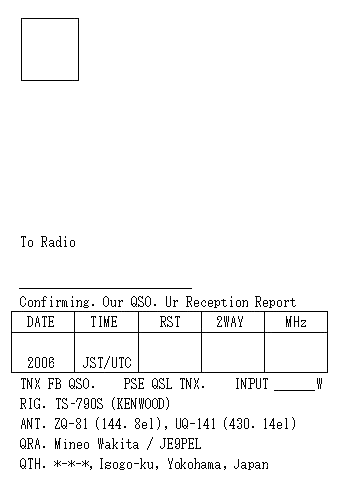

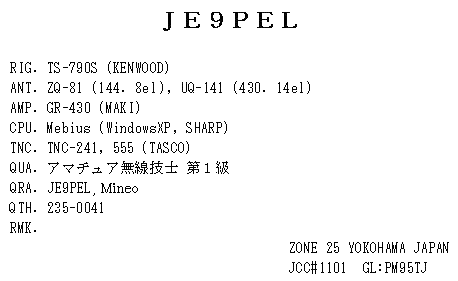

[my QSL_card]
