DX-1

Soyuz / UKube-1, FUNcube-2, DX-1




AISSat-2, University of Toronto, Institute for Aerospace Studies, Norway
Baumanets-2, Bauman Moscow State Technical University, Russia
DX-1, Dauria Aerospace, Russia
FUNcube-2, UK Space Agency, UK
Meteor-M N2, NPP VNIIEM, Russia
M3MSat, CSA/COM DEV, Canada
Relek (MKA-PN-2), Lavochkin, Russia
SkySat-2, Skybox Imaging, USA
TechDemoSat-1, SSTL, UK
UKube-1, UK Space Agency, UK
Venta-1, Ventspils University, Latvia

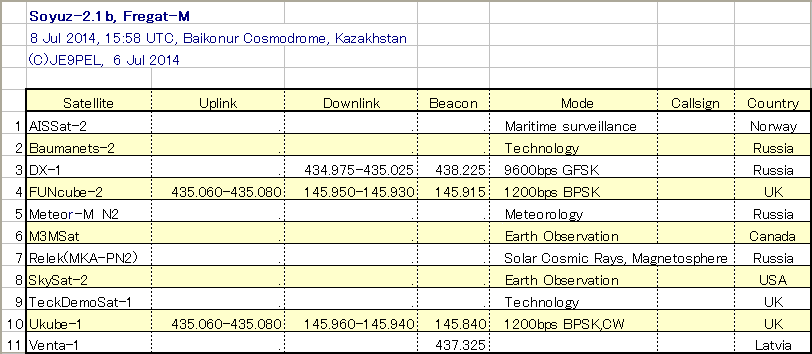

Soyuz successfully Launches Six Secondary Payloads
8 Jul 2014, 15:58 UTC, Baikonur Cosmodrome, Kazakhstan




(C)SPACEFLIGHT


UKube-1, 40074U 14037F, 2 minutes interval
10:46-10:59 UTC, 12 Jul 2014, Ele 45 SE-E-N, 145.840MHz(+2kHz) CW




FUNcube-2, 40074U 14037F, 5 seconds interval
11:19-11:31 UTC, 7 Aug 2014, Ele 86 S-Z-N, 145.915MHz 1200bps BPSK


http://warehouse.funcube.org.uk/fitter.html?satelliteId=1

FUNcube-2 using FCD
11:38-11:51 UTC, 8 Aug 2014, Ele 50 S-W-WN, 145.915MHz 1200bps BPSK




DX-1, 40071U 14037C, 1 minute interval
10:49-11:02 UTC, 12 Jul 2014, Ele 49 SE-E-N, 438.225MHz 9600bps GFSK

1:Fm Dauria To DSC001 <UI F/R Pid=F0 Len=255> [19:56:17R]
1:Fm Dauria To DSC001 <UI F/R Pid=F0 Len=255> [19:57:17R]
1:Fm Dauria To DSC001 <UI F/R Pid=F0 Len=255> [19:58:17R]
1:Fm Dauria To DSC001 <UI F/R Pid=F0 Len=255> [19:59:47R]


DX-1 Pre_TLE
1 99999U 14999Q   14189.77200093  .00000000  00000-0  00000+0 0   189
2 99999 098.4063 241.3788 0009514 255.2875 334.5465 14.78395364    14

Carrier Frequency 438.225 MHz
Protocol          AX.25
Callsign Source   DSC001
Callsign Receiver Dauria
TMI Packet Size   55 bytes
Rate              9600 bps
Modulation        GFSK

Uplink Command and Control   144.975  -  145.025  MHz
Downlink Telemetry data      434.975  -  435.025  MHz
Uplink AIS ship tracking RX  162.0125 -  162.0375 MHz
Downlink data               2269.500  - 2270.500  MHz



(C)DX-1 Dauria Aerospace, Russia

[Reference]

http://habrahabr.ru/company/dauria/blog/228669/
http://www.ne.jp/asahi/hamradio/je9pel/sats2014.htm#soyuz
http://amsat-uk.org/2014/04/27/dx-1-microsatellite-baikonur/
http://amsat-uk.org/2014/07/04/dx-1-appeal-to-radio-hams-from-dauria-aerospace/
http://www.spaceflight101.com/soyuz-2-1b---meteor-m-2-launch-updates.html
http://www.ne.jp/asahi/hamradio/je9pel/sats2014.htm#soyuz
