EXPERIMENT OF WIRE ANTENNA WITH ATU

Antennas using ATU are all easy construction. I should think it means I wouldn't have much gaint.
anyway, Easy Construction is very attractive for me.

Wire antenna with ATU Delta Loop antenna for HF

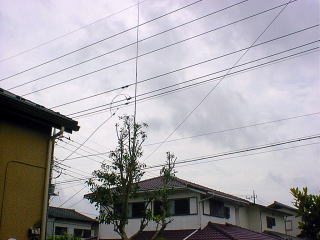

Wire antenna with ATU / July01.2006. vertical portion is 4.5 meters long fishing lod which winded 10 meters wire like herical antenna. and horizon part is about 6meters long wire.

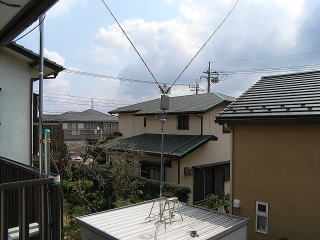

DELTA LOOP Delta Loop antenna for HF / Apr. 2007 80m to 10m band antenna just only 6mH. Worked entity by this antenna his call band mode remarks Date K6BZS 80m CW USA, CA JT1ZW 80m CW Mongolia JJ8DEN/JD1 80m CW Ogasawara KH6/AA4V 40m CW Hawaii DS3FYW 40m CW Korea BD1WC 40m CW China N8S 30m CW Swains Island RW0LIF 20m CW Asiatic Russia BD7KLC 20m CW China BX4AJ 20m CW Taiwan BS7H 20m CW Scarborough Reef HA1AG 20m CW Hungary 2007.July N8S 17m CW Swains Island DU1LFP 17m CW Philippines SM4EXP 17m CW Sweden

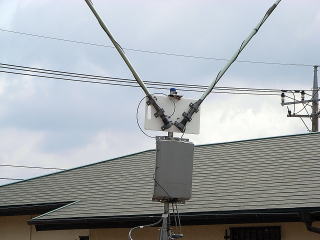

Delta Loop antenna with AH-3 auto tuner SWR is below 2 on all band but DX signals are weak.
