40m Band

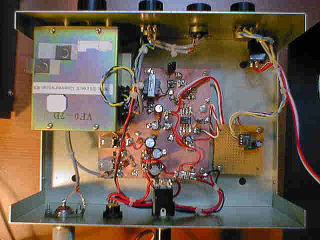

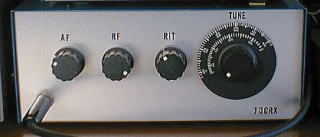

40mRX： A3j A1 Receiver/Direct conversion

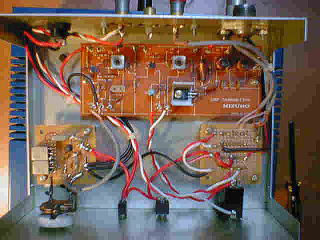

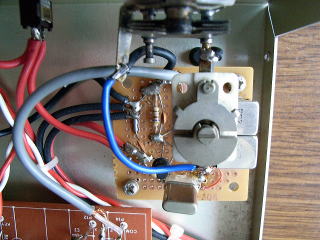

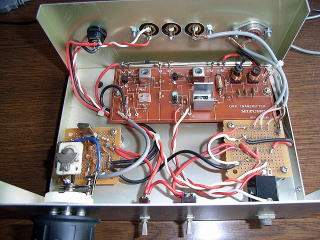

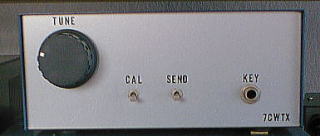

40mTX： A1 Transmitter/2Wqrp/CW
OUTPUT
Mesured by FCZ QRP Power Meter
| Power Supply Voltage |
dBm | Output(watts) |
|---|---|---|
| 8V | 30 | 1.0 |
| 9V | 32 | 1.58 |
| 10V | 33 | 2.0 |

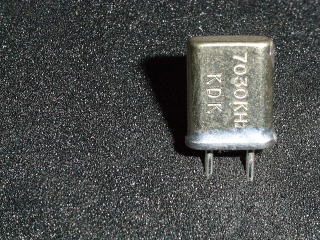

X'TAL A A1 freq 7020kHz /A2 freq 7030kHz
MIZUHO

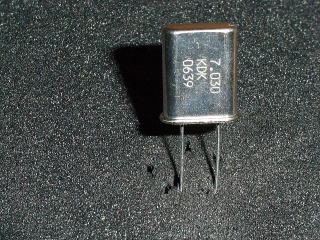

X'TAL B
freq 7030KHz Type HC-49
SATO PARTS

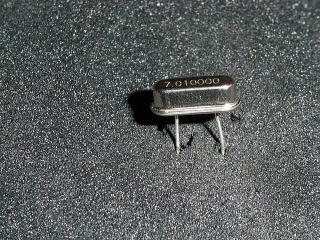

X'TAL C freq 7010KHz Type HC-49S
SATO PARTS
VXO FREQ. ( ORIGINAL )
| X'TAL freq Type Vender |
MIN frequency KHz |
MAX frequency KHz |
|---|---|---|
| X'TAL A1 freq 7020kHz Type ? MIZUHO |
7004.5 | 7020 |
| X'TAL A2 freq 7030kHz Type ? MIZUHO |
7015 | 7033 |
| X'TAL C freq 7010KHz Type HC-49S SATO PARTS |
7006 | 7010 |

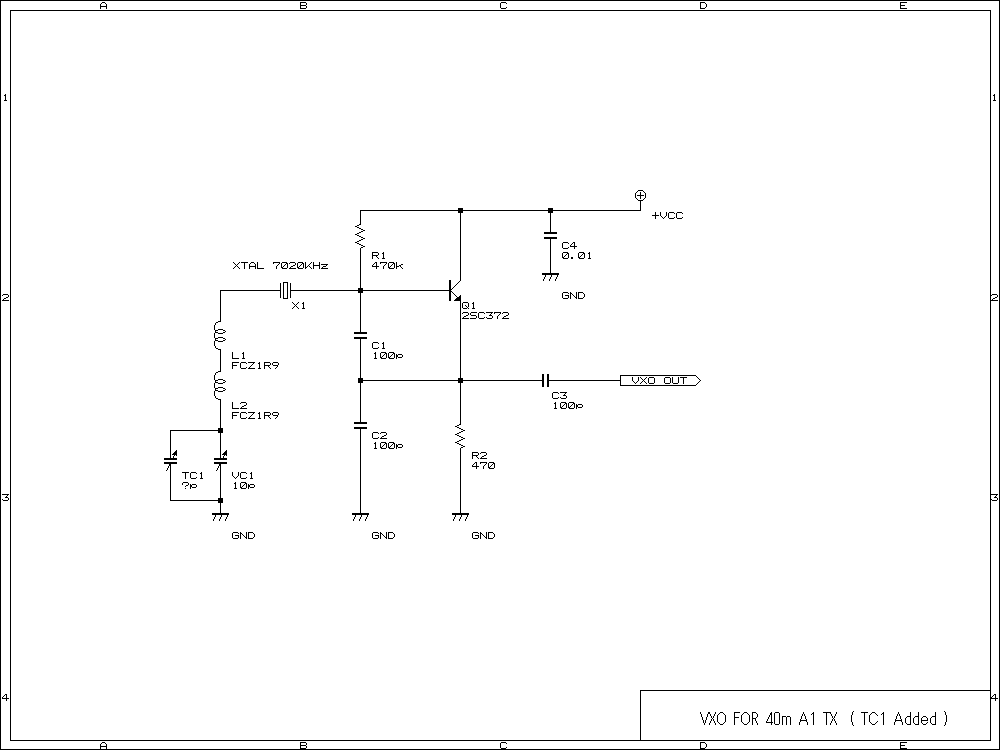

VXO FREQ. ( TC1 ADDED )
| X'TAL freq Type Vender |
MIN frequency KHz |
MAX frequency KHz |
|---|---|---|
| X'TAL A1 freq 7020kHz Type ? MIZUHO |
7002.7 | 7017.7 |
| X'TAL A2 freq 7030kHz Type ? MIZUHO |
||
| X'TAL C freq 7010KHz Type HC-49S SATO PARTS |
