TechnoSat of TU Berlin



TechnoSat with Kanopus-V-IK 1, Flying Laptop, WNISAT-1R, NORSAT-1/2
CICERO-1/2/3, Corvus-BC 1/2, MKA-N 1/2, Flock-2k 1-48, Lemur-2 42-49
NanoACE, Mayak, Iskra-MAI-85, Ecuador-UTE-YuZGU

Launch Site: Bajkonur LC-31/6
Launch Vehicle: Soyuz-2-1a Fregat-M
Launch date: 14 July 2017, 06:36:49 UTC

Technology, 30 x 45 x 45cm
Technische Universitat Berlin
435.950 MHz, 4k8/9k6 GMSK CW, DP0TBA

1 99999U 17999A   17195.37735185 +.00000050  00000-0 +47182-5 0    05
2 99999  97.6292 105.0623 0009829 168.5761  60.8928 14.94678211    02
1 42825U 17042A   17195.81613742 -.00000067  00000-0  00000-0 0  9994
2 42825  97.4374 105.3632 0002983  87.7765  22.0594 15.19405056    85

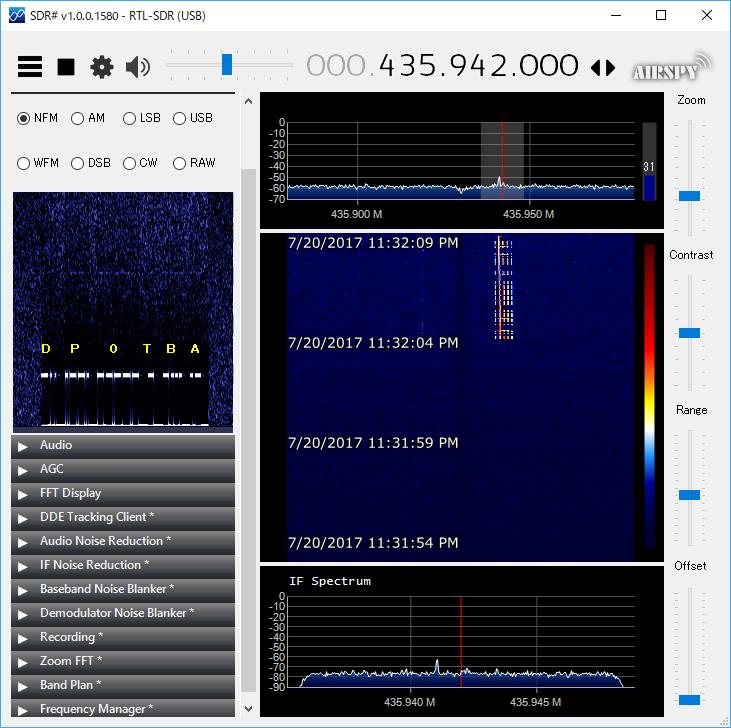

Received by JE9PEL
TECHNOSAT = 42829 17042E
14:24-14:36 UTC, 20 Jul 2017, Ele 79 N-Z-S, 435.950MHz FM(CW), DP0TBA

Soyuz cluster launch, (C)Space Report

On Jul 14 Roskosmos launched a Soyuz with the Kanopus-V-IK
imaging satellite and 72 small secondary payloads.

The Soyuz placed the Fregat upper stage on a suborbital trajectory.
Fregat made multiple burns to several different orbits to dispense
its payloads.

  0636 UTC    Launch                   Orbit
  0645-0652   Fregat burn 1            180? x 500? km
  0735-0736   Fregat burn 2            480  x 522
  0738        Kanopus deployed
  0813-0814   Fregat burn 3            500? x 600?
  0858-0859   Fregat burn 4            600? x 600?
  0901-0905   Deployed 5 satellites  - probably FLP, Technosat,
                                       WNISAT, Norsat-1/2
  0910-0926   Deployed 19 satellites - probably MKA-N 1/2, CICERO,
                                       Corvus, LEMUR, NanoACE, Mayak,
                                       Iskra, EUTE-YuzGU
  0951-0953   Fregat burn 5            485? x 600?
  1034-1035   Fregat burn 6            485  x 485
  1418-1441   Deployed 48 Flock-2k Dove satellites
  1451-1453   Fregat burn 7          - 500? x 485
  1518        Fregat reentry

FLP, the Flying Laptop, is from the U. of Stuttgart. The 120kg satellite
has a Ka-band propagation
study experiment and a multispectral camera.

NORSAT-1 and 2 are Norwegian Space Center satellites with AIS payloads
and an experiment to measure total solar irradiance. They use a variant
of the Toronto UTIAS/SFL GNB bus.

WNISAT-1R is a 40 kg Japanese commercial weather satellite using the
AXELSPACE Hodoyoshi bus.

Technosat from the Tech. U of Berlin carries a variety of technology
tests using the new TUBiX20 satellite bus.

MKA-N 1 and 2 are  6U cubesats built by Russia's Dauria Aerospace for
Rosksmos with 22-m resolution multispectral imagers.

CICERO 1 to 3 are 6U cubesats for the US company GeoOptics built by
Tyvak, with GPS-RO weather payloads.

Corvus-BC 1 and 2 are 6U cubesats from the US company AstroDigital
(formerly Canopus) with imaging payloads.

NanoACE is a 3U technology test cubesat from Tyvak.
Iskra-MAI-85 is a 3U student cubesat from MAI (Moscow Aviation Inst.);
I don't know what payloads are on it.

Ekvador-UTE-YuZGU is a 1U cubesat built by students at the SW State
Univ in Kursk in collaboration with Ecuadorian engineers from
Universidad Tecnologica Equinoccial in Quito. I don't know whether
it will be UN-registered as Russian or Ecuadorian.

Mayak ("beacon") is a 3U cubesat from Moscow Polytechnic University.
It is designed to deploy a highly reflective structure about 2m across
which will act as a drag brake but also as an optical beacon.
The intent is that Mayak will be one of the brightest objects in the
night sky; different calculations put the maximum brightness in the
mag -5 to mag -10 range; the lower (and more likely) value still would
make it brighter than the ISS and potentially annoying to astronomical
sky surveys.

The mission also deployed 8 SpireGlobal 3U-cubesat Lemur satellites
and 48 Planet 3U-cubesat Dove imaging  satellites forming the Flock-2k
