(C)LuxSpace, ARRL
Manfred Memorial Moon Mission
Nation: Luxembourg
Type: Lunar fly-by, amateur communications
Operator: LuxSpace
Lifetime: 8 days
Mass: 14 kg (payload only)
Frequency: 145.980 MHz
Mode: JT65B
Launch: 17:59 UTC, 23.Oct.2014
Sites: Xichang Space Center (Songlin), Sichuan, China

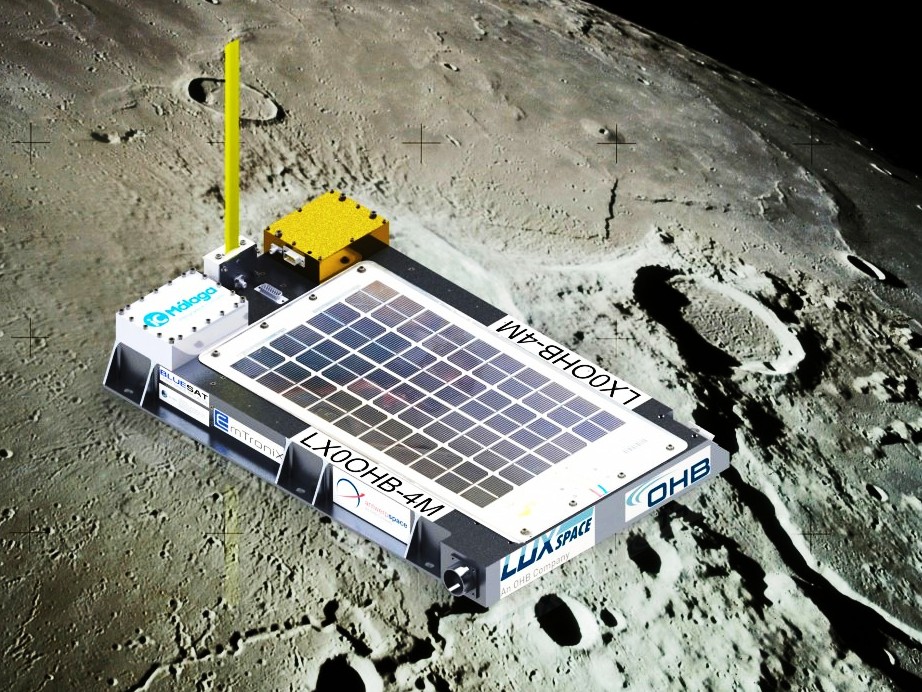

LuxSpace's 4M mission or Manfred Memorial Moon Mission is a low-cost mission of opportunity
to perform a lunar flyby. The spacecraft, named in honour of the late OHB-System founder
Manfred Fuchs, will be part of the last stage of a lunar mission, due to be launched end of
october 2014. 4M is mounted in the equipment bay of the third stage of the CZ-3C/G2 (LM-3C/G2)
(Chang Zheng-3C , Long March-3C) launch vehicle.
The spacecraft features following equipment:
* Primary power source: 28 high energy density, non-rechargeable cells, guaranteeing the
nominal mission whilst providing 6W to the main payload and the experiments,
* Secondary power source: 2 × 8 Triple layer solar cells and 4 × Li-Ion rechargeable cells,
* On-board Computer, FM430 and interface board,
* I/Q modulator,
* RF power amplifier, providing a nominal 1.5 W into the antenna,
* Quarter-wavelength antenna,
* RAD experiment for radiation dose determination on the trajectory.
The trajectory will be a lunar flyby and return to Earth, with 90% chances of re-entry
in the atmosphere . The 10% remaining chances lead to a very interesting orbit.
The nominal mission duration is 8.17 days. The Lunar flyby will occur about 4.04 days.
During flyby, the distance to earth will be about 399636 km at most and the distance to
the Moon will be between 12000 and 24000 km depending on the final injection vector.
The 4M spacecraft will transmit continuously on 145.98 MHz with a 1.5 W power input at
antenna which is a simple monopole. The transmission will start 77.8 minutes after launch.
The amateur radio payload will transmit a JT65B signal, which can be decoded by radio amateurs.
[4M TLE]
Use this TLE up to 27/10 1200UTC
1 99999U 14298.79728009 .00000066 00000-0 00000-0 0 00006
2 99999 030.6553 295.6956 9746689 147.2577 071.9585 00.10600338000010
The following set is to be used after the flyby from 28/10 1200UTC onwards
1 99999U 14301.79728009 .00000000 00000-0 00000-0 0 00009
2 99999 049.9434 067.2017 6639865 045.9865 124.5019 00.06612018000010
4M-LXS first decode
JA0CAW, http://ja0caw-je0mzi.mo-blog.jp/syumi/2014/10/4m-receivedsate.html
JE1CVL, http://heiseiturezuregusa.blog.ocn.ne.jp/a/2014/10/1024_c204.html
JE9PEL, I can't decode 4M-LXS yet.
http://www.youtube.com/watch?v=OL3bOb3s_kQ4M-LXS luner flyby from 12:00 UTC, 28 Oct
4M-LXS telemetry data by DK3WN
4M - 332.000km and still some decodings, 26 Oct 2014
http://www.dk3wn.info/p/?p=51393
4M telemetry data, 27 Oct 2014
http://www.dk3wn.info/p/?p=514034M-LXS signal decode
(1) WSJT_10.0r4336a + LX2RG5.wav + WMP10 on Windows_Vista
(2) WSJT_10.0r4336a + 4m1024.mp3 + QTP7 on Windows_XP
http://moon.luxspace.lu/receiving-4m/http://cloud.luxspace.lu/public.php?service=files&t=33c4a21c09ba3736a55fc09896e463f6http://ja0caw-je0mzi.mo-blog.jp/syumi/2014/10/4m-wavsatellite.htmlhttp://heiseiturezuregusa.blog.ocn.ne.jp/a/2014/10/107_be07.htmlhttp://heiseiturezuregusa.blog.ocn.ne.jp/a/2014/10/post_37d6.htmlWSJT decode LX0OHB-4M
Subject: wsjt decode LX0OHB-4M
From: g8fjg
To: je9pel
Date: Tue, 28 Oct 2014 12:07:45 +0000
hi,
received this from LX0OHB-4M today
9ele lfa home made lna
JO01CM
115308 0 -29 0.3 307 7 *
115408 1 -28 0.3 307 3 *
115508 0 -32 0.2 307 17 *
115608 5 -23 0.3 307 3 * I AM JE9PEL. 1 0
115708 3 -27 0.3 307 3 *
115808 1 -26 0.3 307 3 *
115908 0 -28 0.3 307 3 *
120008 5 -24 0.3 307 3 * R4B8L3VU4N 1 0
120108 0 -33 -1.9 291 29
120208 0 -32 7.7 307 35 #
120308 6 -24 0.3 304 3 *
120408 5 -21 0.3 304 3 * HUMBATAETERAE 1 0
120508 2 -26 0.3 304 3 *
Information by DK3WN
4M flyby ?
----- Antworten -----
Subject: AW: 4M flyby ?
From: Mike Rupprecht
To: Mineo Wakita
Date: Sat, 1 Nov 2014 11:43:42 +0100
Dear Mineo san,
... why not?
I think the problem might be the batteries.
Not sure if they last another week.
At the moment we have 13.8 - 13.9 volts.
73 Mike
DK3WN
Location : Mineo (139.7'30" E, 37.56'15" N)
Time zone : UTC
Conditions : Maximum sun elevation = None
Minimum sat elevation = 1 deg
Illumination NOT required
Time Satellite Azm Elv Mag Range S.Azm S.Elv
------------------------------------------------------------------
06.11.2014 10:42:43 4M 145.9 1.0 243563 278.0 -36.3
06.11.2014 14:19:28 4M 183.8 14.0 233952 355.1 -68.1
06.11.2014 17:53:17 4M 222.8 1.0 227326 78.8 -39.9
07.11.2014 10:24:39 4M 112.7 1.0 190216 274.6 -33.0
07.11.2014 16:05:55 4M 187.9 42.3 174252 52.0 -59.4
07.11.2014 22:01:18 4M 270.1 1.0 167464 117.5 -7.5
08.11.2014 10:13:03 4M 60.1 1.0 151999 272.5 -30.8
08.11.2014 18:31:49 4M 10.2 86.7 143171 86.1 -32.8
09.11.2014 09:36:30 4M 354.6 1.0 162377 266.6 -23.8
09.11.2014 11:42:13 4M 8.3 1.0 165659 288.6 -48.2
10.11.2014 01:11:25 4M 354.5 84.4 185782 158.4 -32.2
10.11.2014 09:51:52 4M 313.8 1.0 211308 268.6 -26.9
10.11.2014 19:15:11 4M 58.0 1.0 232729 93.3 -24.6
11.11.2014 02:47:35 4M 176.1 71.6 243765 185.8 -34.5
11.11.2014 09:45:19 4M 287.5 1.0 264894 267.4 -25.8
-----Ursprungliche Nachricht-----
Von: Mineo Wakita
Gesendet: Samstag, 1. November 2014 11:16
An: DK3WN
Betreff: Re: 4M flyby ?
4M flyby might have failed or it might be a first planned.
When I calculate using the updated TLE, 4M is not easily come back
to Earth by passing through the distant.
My antennas is poor ability, so it's difficult to capture the signal
from 4M.
4M-TLE Update
1 99999U 14999b 14301.79728009 .00000095 00000-0 21252+9 0 00005
2 99999 054.2430 068.8530 4827223 051.3941 131.1729 00.05703448000012
JE9PEL, Mineo Wakita
SDR#, 4M-LXShttp://www.ne.jp/asahi/hamradio/je9pel/aprs_9k6#fcd1
