Satellites on LINUX #2


 LINUX Ubuntu + GNURadio

 1. Audio -> Audio Source, Audio Sink
 2. File Operators ->  File Source, File Sink
 3. Waveform Generators -> Signal Source, Noise Source, etc.
 4. Setup further in Properties by right-click on the blocks.
 5. It's basically connecting the source block and sink block.
 6. When you click the out-connector and in-connector is tied between them by a wire.


AFSK using GNURadio
 http://github.com/dl1ksv/gr-ax25
 http://github.com/dl1ksv/gr-display
 http://jh4xsy.asablo.jp/blog/2014/12/06/

GMSK using GNURadio
 http://github.com/darkstar007/gr-ec
 http://jh4xsy.asablo.jp/blog/2014/10/26/

PSK31 using GNURadio
 http://github.com/argilo/gr-ham
 http://jh4xsy.asablo.jp/blog/2014/11/16/




GNURadio Flow Graph example for Satellites

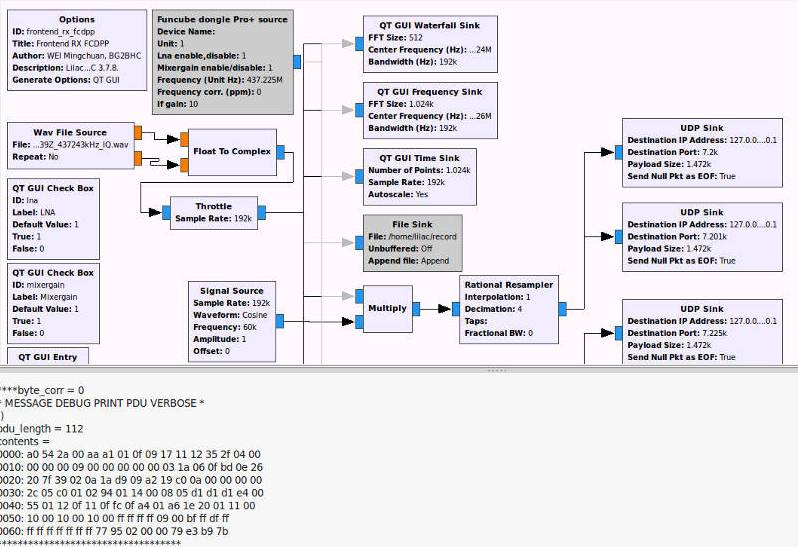

   LilacSat-2                                LilacSat-2

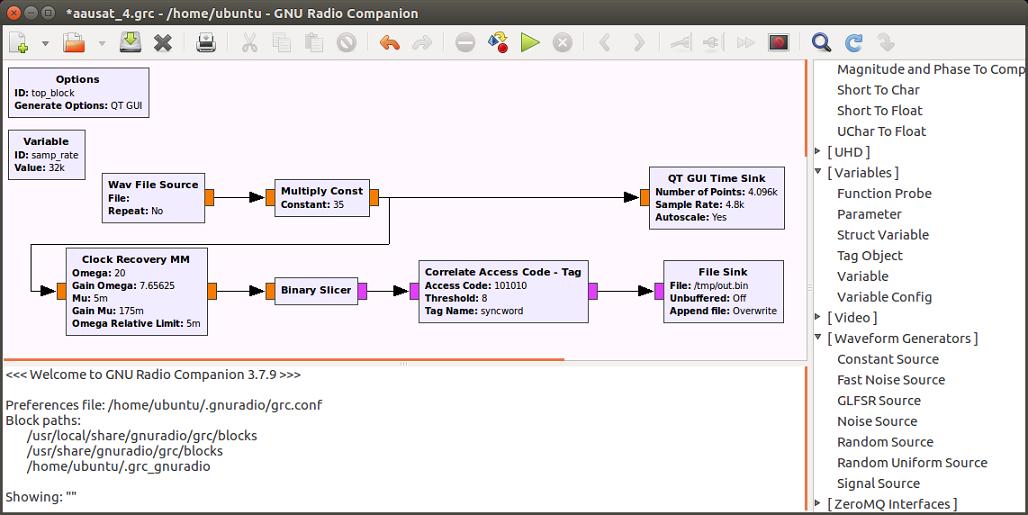

   LilacSat-2                                AAUSAT-4


   NuSat-1/2                                 GomX-3



Gnuradio Charts [2016 AMSAT Colloquium]

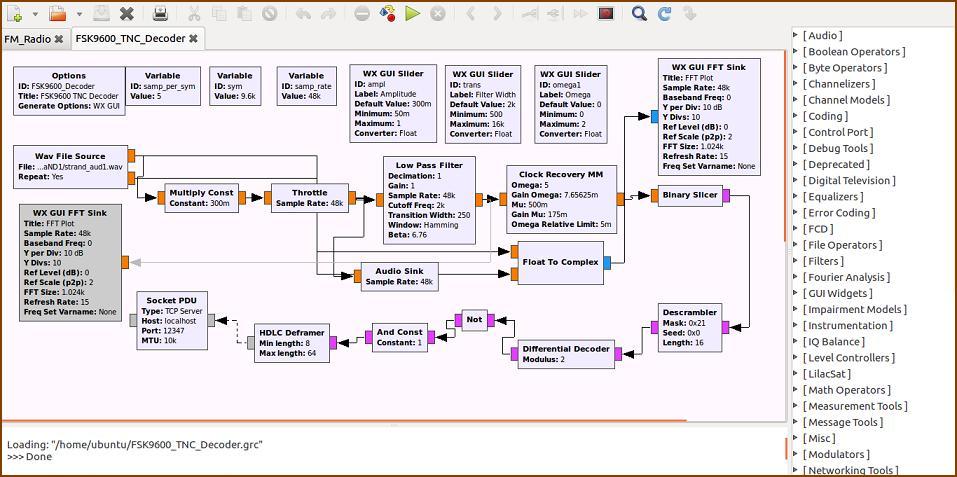

 1. Download 'FSK9600_TNC_Decoder.grc' & 'strand_aud1.wav' in 2E0OBC Sandbox.
 2. Run GNURadio and open 'FSK9600_TNC_Decoder.grc'.

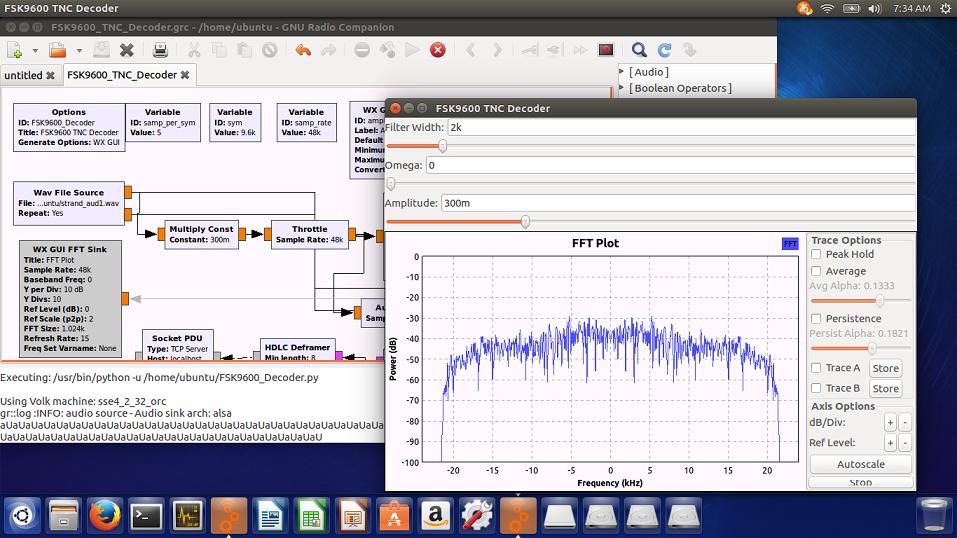

 3. Click Triangle button (Execube the flow graph) in GNURadio.
 4. It will execute by specifying a 9k6 wav file in 'Wav File Sources'.

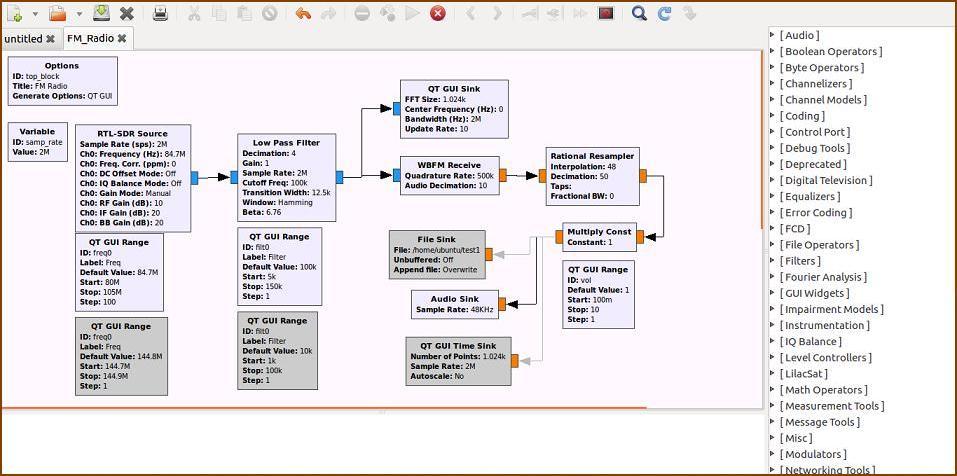

 5. Download 'FM_Radio.grc' to the next.

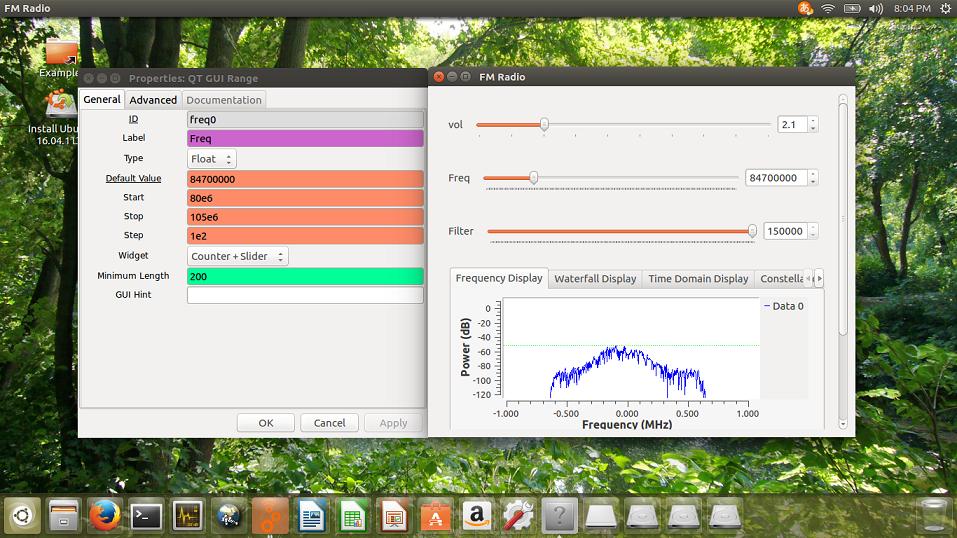

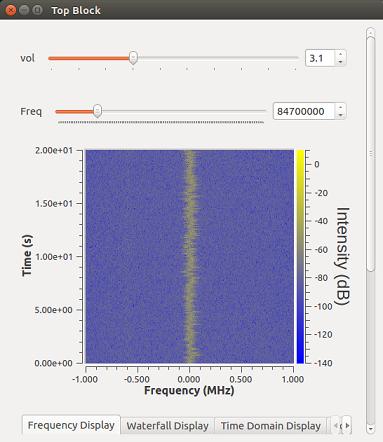

 6. 'QT GUI Range' -> Right click -> Properties -> Edit 'Default Value'(frequency)
 7. 'File Sink' -> Right click -> Properties -> Edit 'File name'
 8. Then 'FM_Radio.grc' will execute in GNURadio.

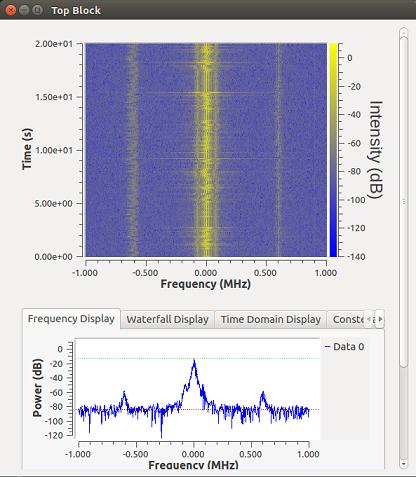

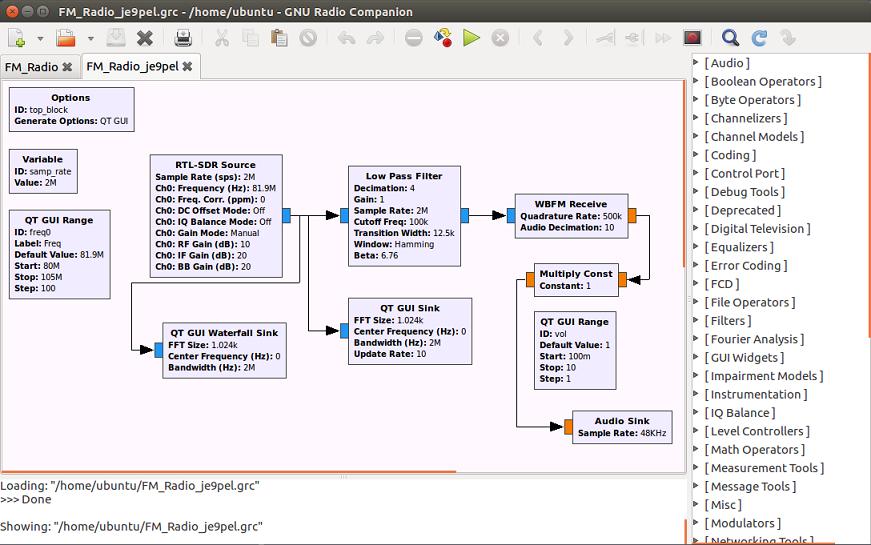

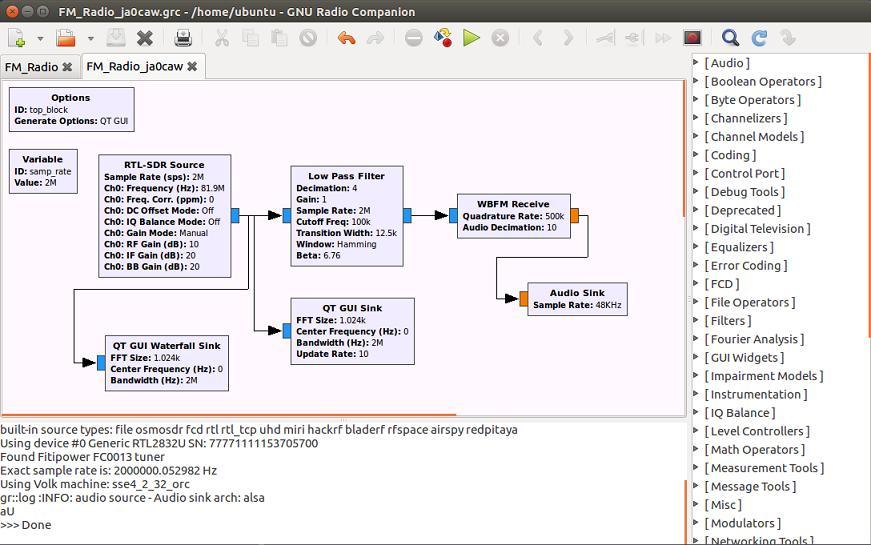

FM_Radio extended version by JA0CAW & JE9PEL



 http://www.dropbox.com/s/heph1ffponihqfn/FM_Radio_je9pel.grc?dl=0


NOAA and Meteor-M2 using Ubuntu

 http://www.wxtoimg.com/
 http://www.rtl-sdr.com/a-tutorial-on-decoding-noaa-and-meteor-m2-weather-satellite-images-in-ubuntu/




ISS SSTV on Raspberry pi and QSSTV

 http://users.telenet.be/on4qz
 http://chertseyradioclub.blogspot.jp/2016/08/setting-up-raspberry-pi-3-and-qsstv.html

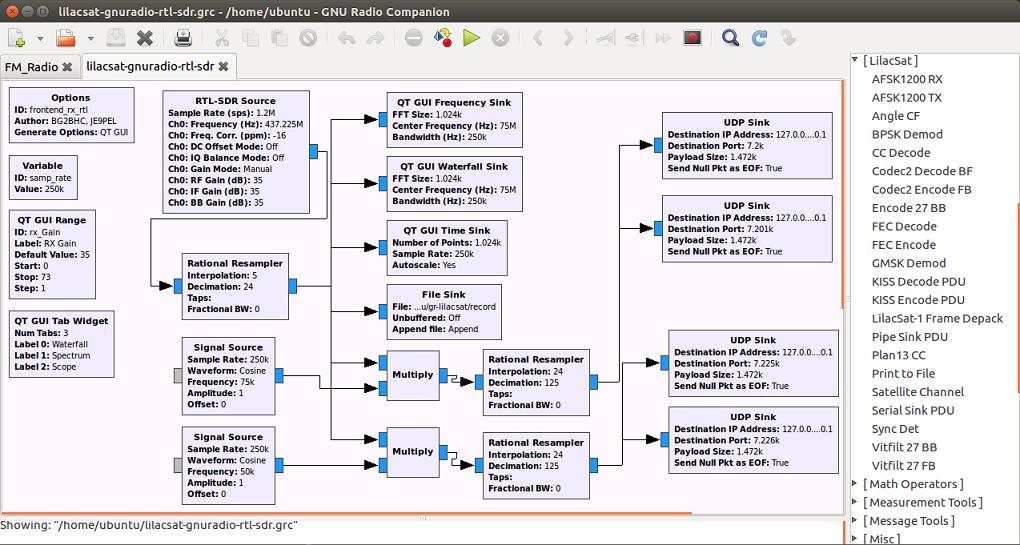

LilacSat Telemetry Decoder installing

 1. $ git clone https://github.com/bg2bhc/gr-lilacsat.git
 2. $ cd gr-lilacsat
 3. $ mkdir build
 4. $ cd build
 5. $ cmake ../
 6. $ make
 7. $ sudo make install
 8. $ sudo ldconfig
 9. 'LilacSat' is located in the item of GNURadio.
10. http://lilacsat.hit.edu.cn/?page_id=257
11. http://dl.dropbox.com/s/kpuj958wr8s00t8/LilacSat-2_Live_CD_User_Manual_en.pdf
12. http://lilacsat.hit.edu.cn/wp-content/uploads/2015/09/LilacSat-2_Live_CD_User_Manual.pdf
13. http://github.com/bg2bhc/gr-lilacsat
14. http://github.com/daniestevez/lilacsat
15. http://github.com/daniestevez/gr-satellites

   (on going)                                 (on going)
