HADES-L

HADES-L Test GRC on Windows


[Common features of HADES-SA and HADES-L]

HADES-L is not AX.25, It uses a proprietary "GENESIS format 800 bps FSK".
ALooking at the source code for the HADES-L decoder released by AMSAT-EA,
it is clear that HADES-L also follows the same specifications mentioned
above. Furthermore, HADES-L's main.c directly includes genesis_crc.h and
genesis_scrambler.h. In other words, this is not merely a similarity in
name, it confirms that the actual HADES-L decoder employs the GENESIS method.
HADES-L also employs the same GENESIS series data demodulation and decoding
formats as HADES-SA.
https://www.amsat-ea.org/proyectos/


HADES-SA
MSB-first
CRC-CCITT-FALSE
FSK GENESIS 800 bd
Initial value: 0x2C350000
Polynomial: x^17 + x^12 + 1
1600 Hz tone separation
Multiplicative scrambler

HADES-L
GENESIS CRC
GENESIS scrambler
Polynomial: x^17 + x^12 + 1
Scrambler initial value: 0x2C350000
CRC initial value: 0xFFFF


[HADES-SA ＋ Soundmodem]

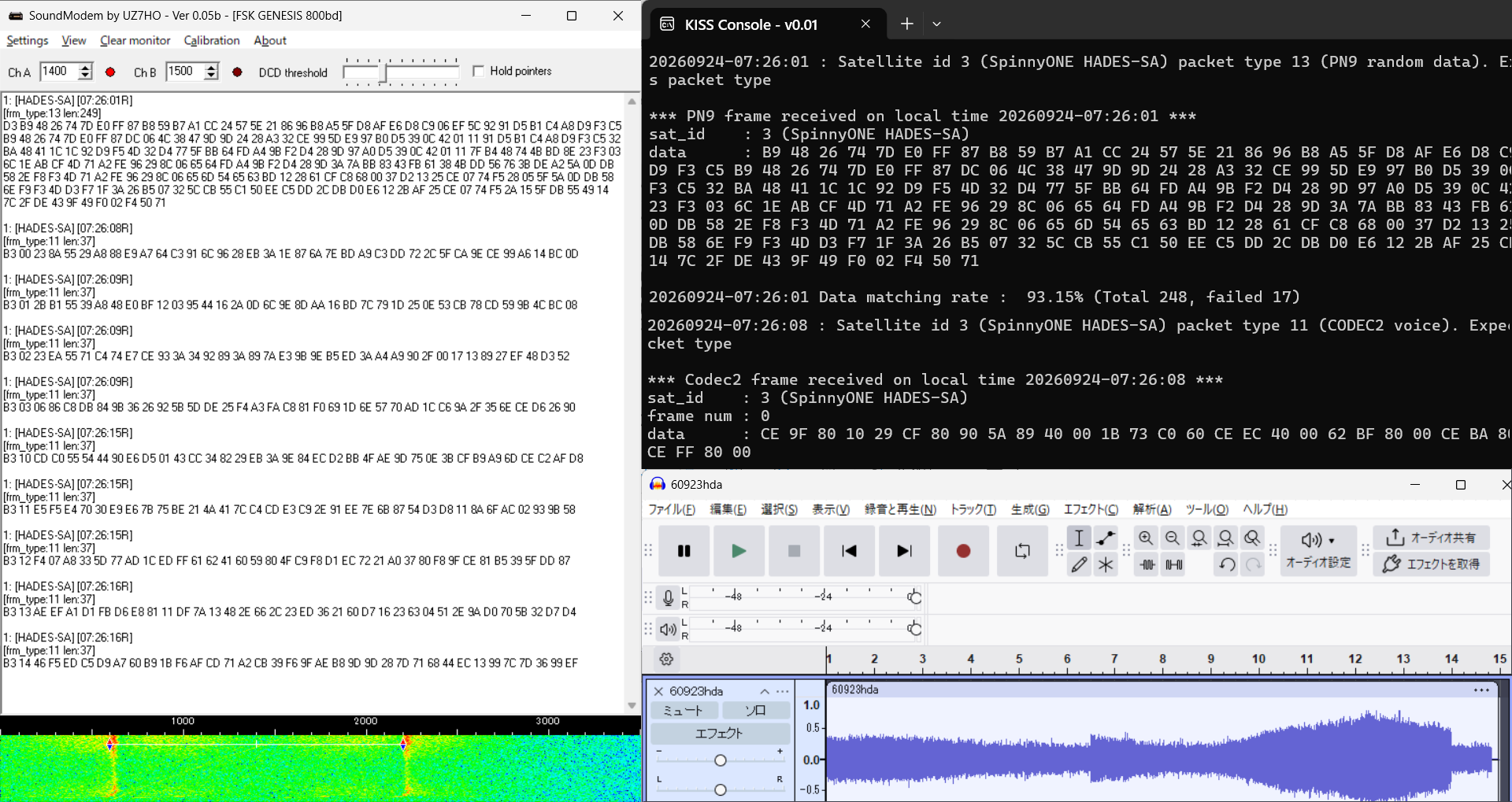

In 60923hda.wav, the received HADES-SA frames are displayed continuously
within UZ7HO's Soundmodem_for_HADES_SA_SpinnyONE.zip (v0.05b). The console window
of the bundled KISSGENESIS.exe which interfaces with Soundmodem displays items such
as packet type 13 and packet type 11 (CODEC2 voice) from the SpinnyONE HADES-SA.
This 60923hda.wav is an actual HADES-SA audio file that can be successfully decoded
as GENESIS 800-baud FSK.

HADES-SA, 60923hda.wav
#14185673, 2026-05-30 07:06:13
FSK 800 bps, 1600 Hz separation
Measured value Low:620 Hz, High:2220 Hz

Ref.SDM: E-Mail from UZ7HO, 11 Oct 2026
hs_soundmodem31.zip for GFSK_Satellites
erminaz.zip for ERMINAZ
hadesl.zip  for HADES-L
unne1b.zip  for UNNE-1B
lilac2.zip  for ASRTU-1/LILACSAT2/BY70/JAMX01
            LILACSAT2 uses FL114 mode, other sats FL223

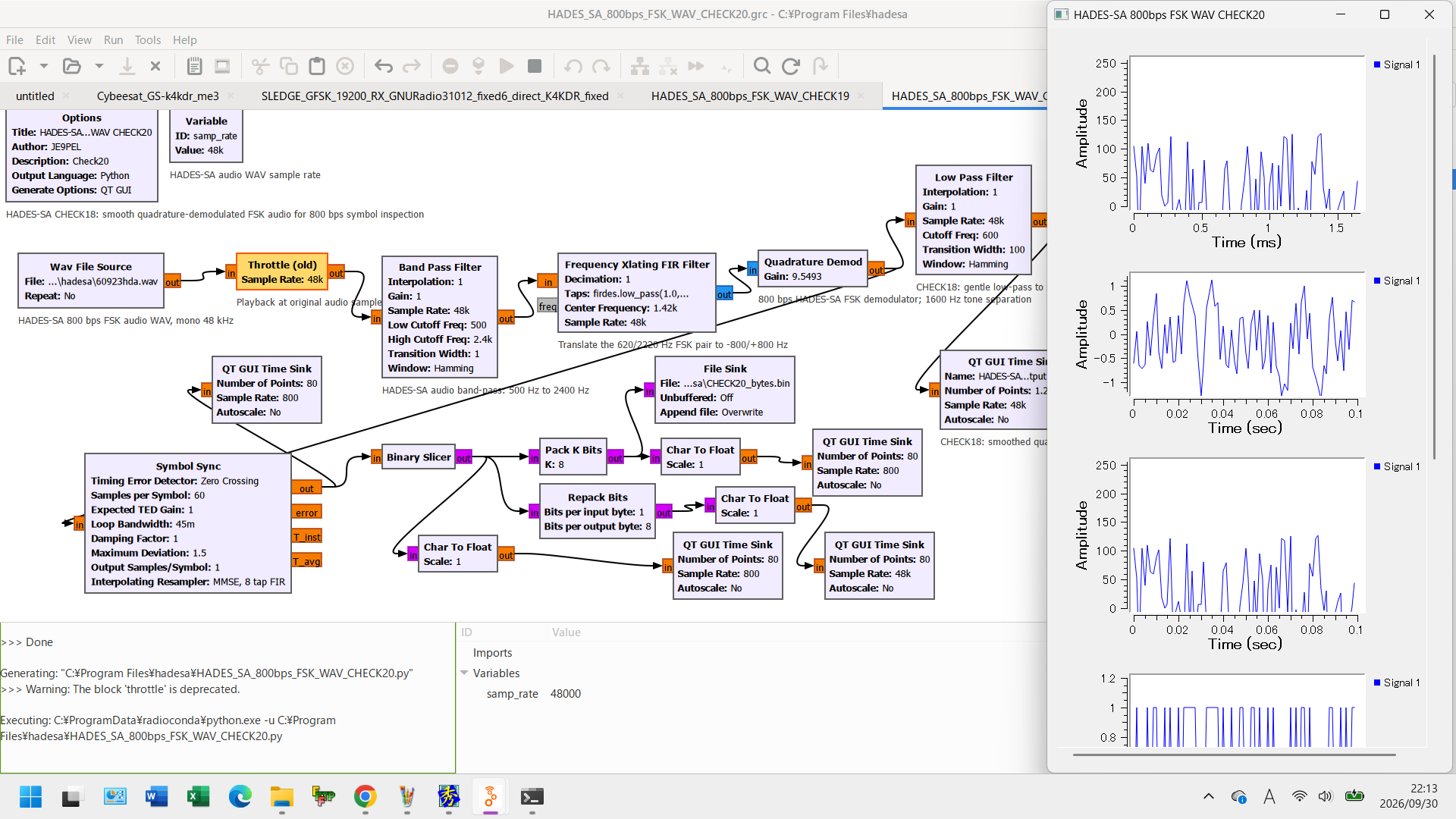

[HADES-SA ＋ GRC] (in progress)
https://www.ne.jp/asahi/hamradio/je9pel/HADES_SA_800bps_FSK_WAV_CHECK26_bits.grc
