Chinese satellites #6: CAS-2T, KS-1Q, TY-1, Pegasus-1



(C)Chinaspaceflight.com

Both CAS-2T and KS-1Q remain attached to CZ-11 (China's Long March 11)
fourth final stage.

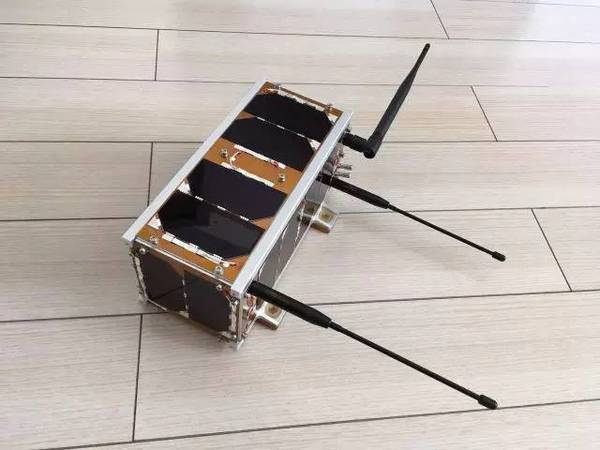

CAS-2T
Launch time: 23:42 UTC, 9 Nov 2016
Launch vehicle: CZ-11(Y2) solid rocket
Oeganizer: CAMSAT
Life: 10~30 days

Up:     145.925MHz FM
Dpwn:   435.615MHz FM
Beacon: 435.710MHz CW


(C)China Spaceflight

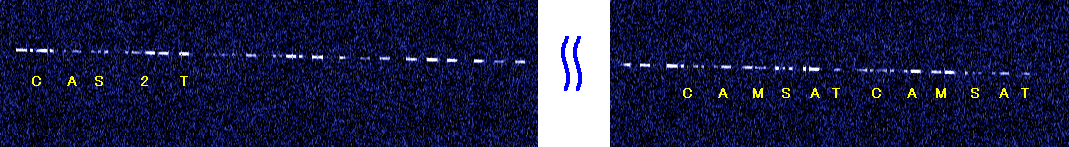

CAS-2T
2016-066E 41845
Received by JE9PEL
09:36-09:50 UTC, 12 Nov 2016, Ele 15 SW-W-WN, 435.710MHz USB

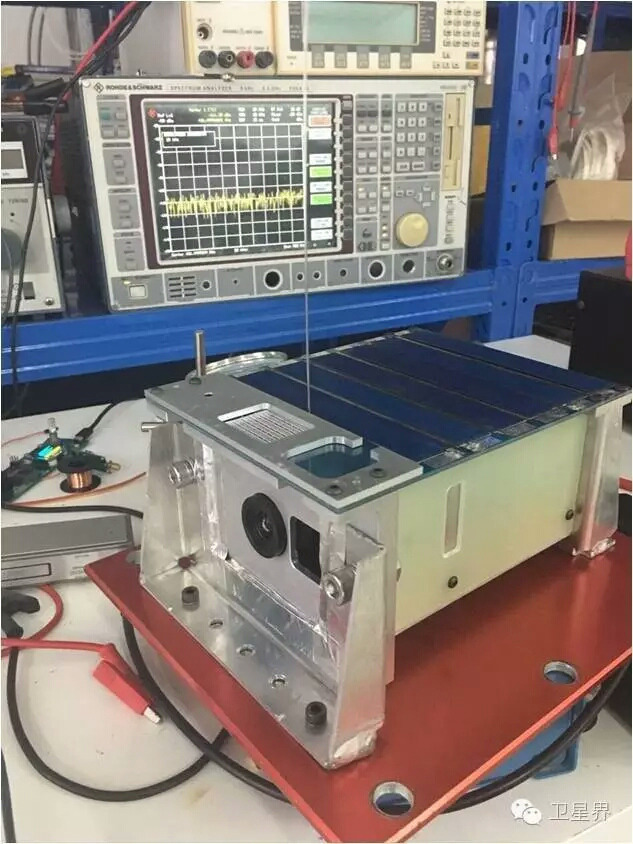

KS-1Q
436.500MHz
20kbps GMSK, CC712 with RS(255,223) every 8-10 seconds (actually every 4'40")
http://bbs.kechuang.org/t/81006
http://www.chinaspaceflight.com/satellite/KS-1Q.html
http://m.sohu.com/n/473116414/?wscrid=95360_1
http://destevez.net/2016/11/about-ks-1q/

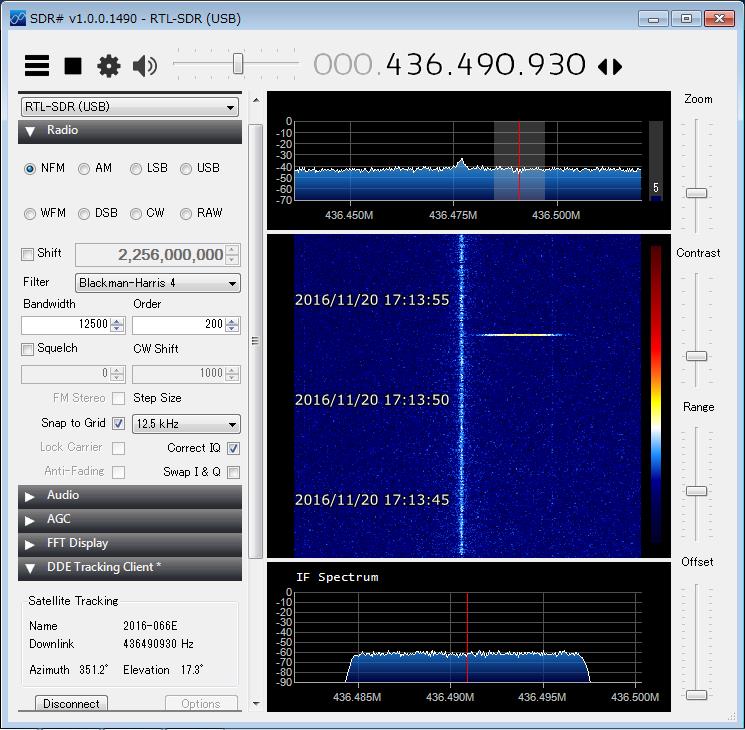

KS-1Q
2016-066E 41845
Received by JE9PEL
08:01-08:17 UTC, 20 Nov 2016, Ele 77 S-Z-N, 20kbps GMSK every 4'40"
http://www.dropbox.com/s/bpn3ao3qet2ej5b/61120ksq.wav?dl=0




[amsat-bb] Thu Nov 17 03:58:20 UTC 2016
Info of Chinese Launch 2016-066

2016-066D
Satellite Name: TY-1
Mission: Technical experiment
TT&C: 437.500MHz  Bandwith 300kHz
http://www.chinaspaceflight.com/satellite/TY-1.html

2016-066E
Satellite Name: CAS-2T(Dream-1)
Mission: Education, Amateur radio, Technical experiment
CW Beacon: 435.710MHz
FM Transponder Uplink: 145.925MHz
FM Transponder Downlink: 435.615MHz
http://www.chinaspaceflight.com/satellite/fengtai-shaonian-01.html

2016-066E
Satellite Name: KS-1Q
Mission: Technical experiment
TT&C: 436.500MHz  20kbps GMSK
http://www.chinaspaceflight.com/satellite/KS-1Q.html

2016-066F
Satellite Name: Pegasus-1
Mission: Technical experiment
TT&C: 468.000MHz  FSK
http://amsat.org/pipermail/amsat-bb/2016-November/061197.html

Alan, BA1DU
Chinese Amateur Satellite Group(CAMSAT)
