MASTERPIECES OF ISLAMIC ARCHITECTURE
SHAIKH LOTFOLLAH MOSQUE
in ISFAHAN, IRAN
TAKEO KAMIYA
Shaikh Lotfollah Mosque
Lotfollah Mosque facing Royal Square

BACK___ NEXT


GEOMETRIC SPIRIT

It would be Pascal that wrote that there were two kinds of human spirits, the spirit of geometry and the spirit of finesse. I suppose when this spirit of geometry is substantialized visually, it would be Islamic architecture. In particular, I find its acme at the Shaikh Lotfollah Mosque in Isfahan, Iran.
Although the plan of this mosque is slightly intricate, every part is precisely based on geometric principle; and its perfection, admitting no deviations however small they are, makes me feel slightly suffocated.

____
Faience Tile Panel and Winding Passage

In spite of that, this mosque does not fall into boring simplicity with exclusive geometric symmetry; rather it has an unexpected dramatic composition of inner spaces, which displays the genius of the architect who designed this mosque, Ustad Mohammad Reza. I cannot forget the astonishment I got when visiting this mosque for the first time, twenty-four years ago.


THE SAFAVIDS of PERSIA

This relatively small-scale mosque is standing in front of the Meidan-e Shah (Royal Square, now referred to as Imam Square since the Islamic revolution), which the greatest king of the Safavid dynasty, Shah Abbas I, constructed as the central square of the newly developed city of Isfahan in the 16th century. The great square is entirely surrounded by the arcades, which consist of two-storied shops in the same form, which is broken by a small terrace facing an Iwan functioning as the entrance to the Lotfollah Mosque.
The Iwan is an architectural component in Islamic architecture, inherited from the palaces of Sasanid Persia; a half-exterior space under a half-dome or barrel-vault ceiling with a large arch framed with a square wall.

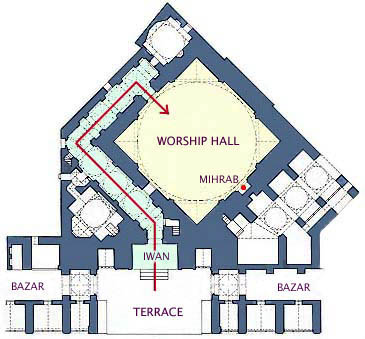

Plan of the Shaikh Lotfollah Mosque, Isfahan
ifrom Henri Stierlin, L'Architecture de l'Islam, 1987 j

Persia (Iran) has developed a new-type of mosque surrounded with Iwans standing at four sides of a courtyard confronting each other, the eFour Iwanf mosque. However, the Shaikh Lotfollah Mosque as s small-scale oratory has no courtyard and makes its solo Iwan the entrance of the mosque.
Behind the Iwan, a narrow passage with low ceiling bends 45 degrees to the left, leading deeper into the passage, which then turns 90 degrees to the right. Just before the end of the passage, there is another turn to the right, and the visitor upon turning enters through an arch opening and suddenly finds himself in an enormous cosmic space covered by high dome like blue sky, which causes him to hold his breath in amazement.


Faience Tile Dome of Worship Room

Actually it is nothing but an 18m in diameter dome, nevertheless after long walk in a dark and narrow passage curving more than once, encountering this space abruptly, one feels it is enormous in contradistinction.
I was deeply impressed and admired this dramatic space-composition. Then what on earth was the reason to get such an unexampled mosque constructed?


ENIGMATIC SCHEME of THE MOSQUE

The primary explanation is the principle that every mosque should be turned in the direction of Makka. Here there is a gap of 45 degrees between the Royal Square and the direction of Makka, which is diagonally on the right backward against the entrance of this mosque; in order to resolve this gap, the explanation they gave was that such a long curving passage was needed.
However, if the reason was so passive, it was improper in the first place to build the mosque on this place. If it had only been located on the opposite side of the square, they must have been able to turn the mosque much more naturally in the direction of Makka.

To begin with, since this is not a mosque for general followers, but the kingfs private oratory (there is no minaret for calling to come to worship), it is even unnecessary to make it face this square. To a great extent it is natural to erect it in the palace quarter, as is the case with the two Moti Masjid (Pearl Mosques) in Delhi and Agra, India.

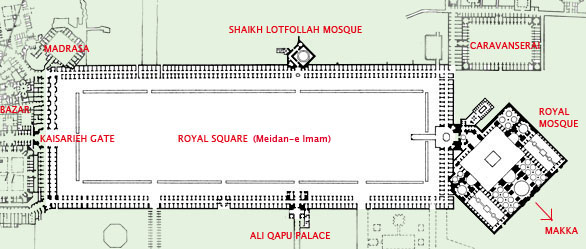

PLAN of Royal Square (Imam Square), Isfahan
ifrom Henri Stierlin, L'Architecture de l'Islam, 1987 j

In other words, this mosque created a monument of dramatic space composition by accumulating unusual behaviors. It is difficult to consider that they spent an enormous sum of national budget only for the purpose of achieving such an artistic effect; this mosque is even now a great mystery to me.

___
Interior of Worship Room and its Mihrab

Though the worship hall has a square plan, it converts quite easily into an octagon solely in laying the eight pointed arches of the same shape continuously, then covers the whole space with ease by a smooth dome.
Here, there are no more traces of vigorous flows of forces or dynamism of pillars contending with gravity, which Ottoman mosques show distinctly. All parts are simply composed of plain walls only, the even surfaces of which are covered all over with the arabesque of tiles based on blue color. It is to say the eternal world without shadows; a great cosmic space of twilight composed of sole and single-minded geometric details.

( from "Eurasia News" 2004)
