QB50 X-CubeSat Telemetry Decoder



I received X-CubeSat 1k2 AFSK signal.
08:29-08:38 UTC, 28 May 2017, Ele 15 S-E-EN, 437.020MHz 1200bps AFSK

1:Fm ON01FR To TLM <UI R Pid=F0 Len=81> [08:30:19R] [++-]
!01000112@064514;020000ff28b8ffb900b6fff2b80158b901b502ba6e97000000bd000000000000

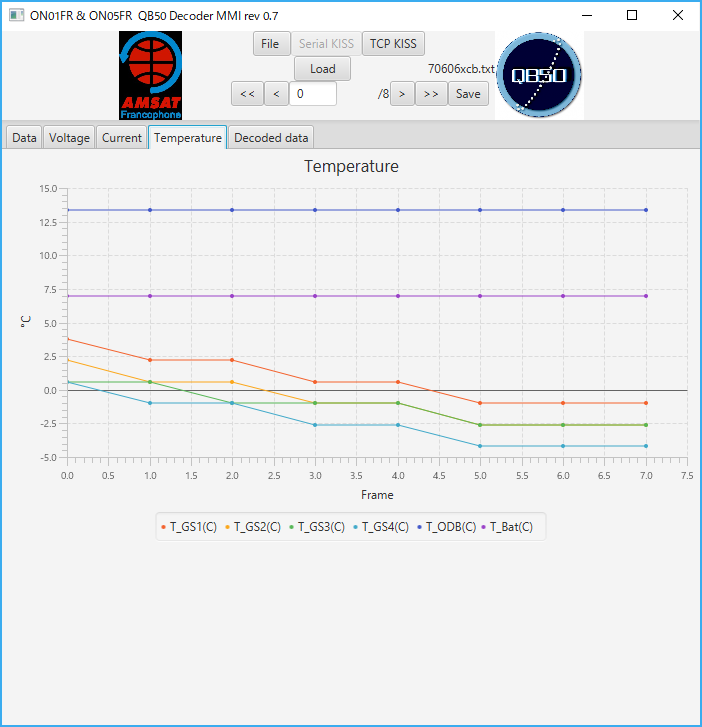

The Telemetry Decoder of X-CubeSat is open to the public on French GS site as "QB50TLM0.7.jar".

http://site.amsat-f.org/
http://site.amsat-f.org/2017/05/12/qb50-document-de-description-des-telemesures-des-satellites-on01fr-on05fr/
http://site.amsat-f.org/2017/05/17/on01fr-on05fr-logiciel-de-decodage-des-telemesures/
http://xcubesat.wordpress.com
http://twitter.com/xcubesat

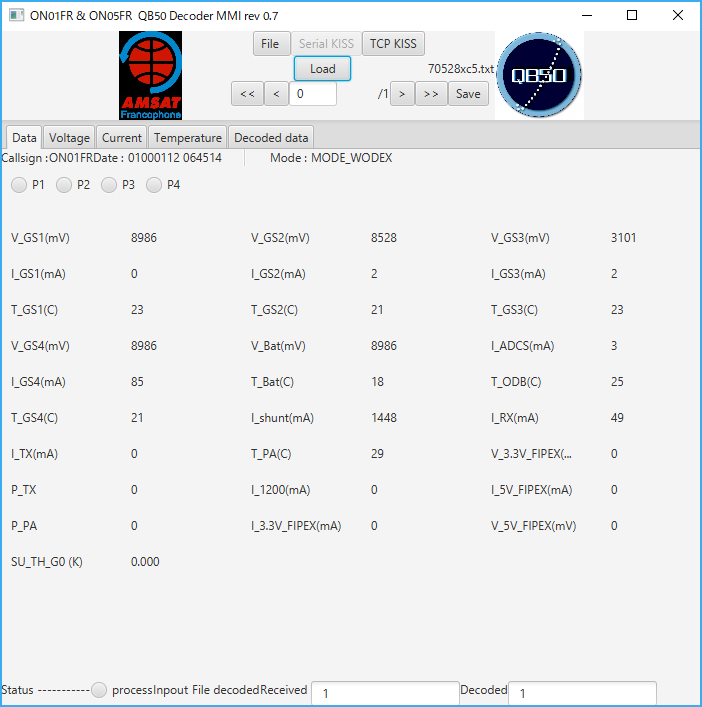

We can analyze the received data by editing it in one line as follows,
from : ON01FR SSID 0 to : TLM SSID 0 data :!01000112@064514;020000ff28b8ffb900b6fff2b80158b901b502ba6e97000000bd000000000000







Spacecube and X-Cubesat some test

Some test should be performed on Spacecube and X-Cubesat
at 8 February 2018. The test should start at 12h30 UTC.

[Mode]
Spacecube: try to swich modulation from  AFSK 1200bps to
           GMSK 9600 bauds
X-Cubesat: keeps additional data (AFSK 1200 bps)

[Frequency]
X-Cubesat: ON01FR, 437.020 MHz
Spacecube: ON05FR, 436.880 MHz

You can send your report to contact at amsat-f.org

Additional information on AMSAT-F, AMSAT-NA, Update.
