PSLV-C29 / Athenoxat-1, Galassia, VELOX-2



Launch Date: 16 December 2015
Launch Site: Satish Dhawan Space Centre, Sriharikota, India
Payload: TeLEOS-1, KR-1, VELOX C1, VELOX-2, Galassia, Athenoxat-1
Launcher: PSLV-C29

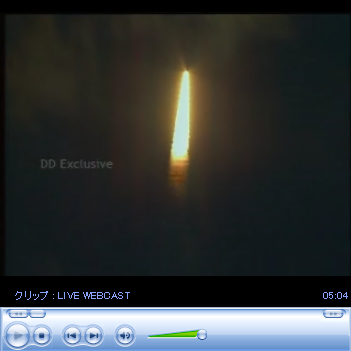

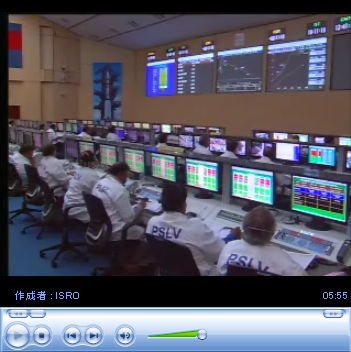

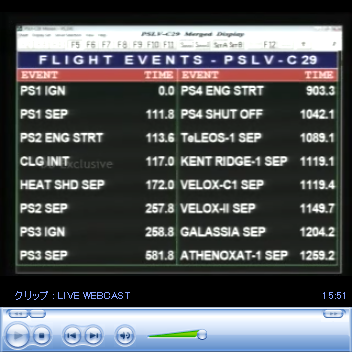

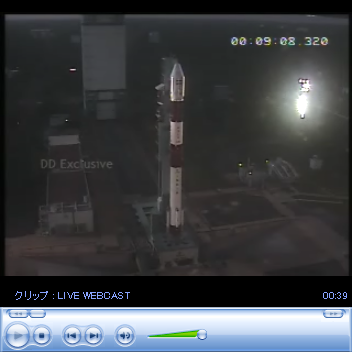

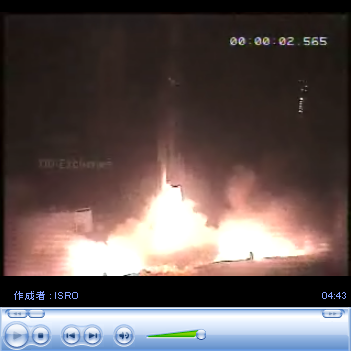

PSLV-C29 Launch live stream


(C)ISRO

http://spaceflight101.com/six-satellites-enter-on-target-orbit-in-successful-pslv-launch/
http://spaceflight101.com/pslv-c29/pslv-c29-payloads/



  (C)ISRO

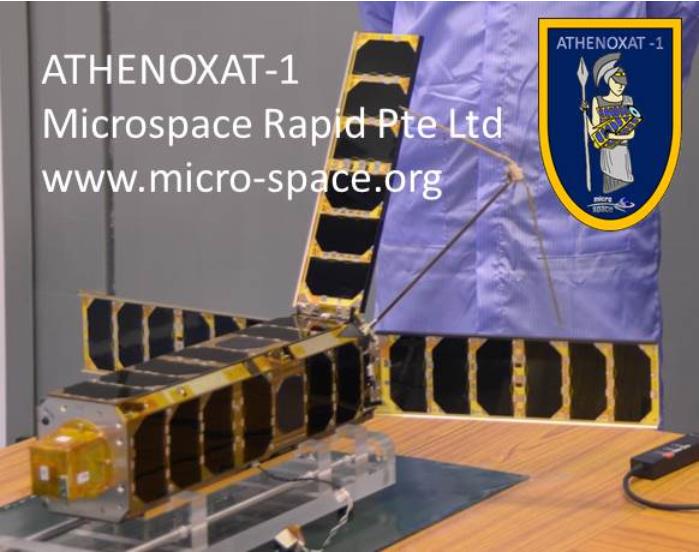

Athenoxat-1
Microspace Rapid Pte Ltd, Singapore
Bus: 3U Cubesat
Downlink: 437.485MHz CW



CW message will be gATX1h on 437.485 MHz every 2 minute
and also with an indication of battery voltage etc.

ATHENOXAT-1
1 12345U 12345U   15350.53544190  .00000000  00000-0  00000-0 0  0003
2 12345  14.9868 209.7101 0004511 307.5625 258.2924 15.05575123 00007

NORAD ID was corrected to "Athenoxat-1 = 41168U 15077C".

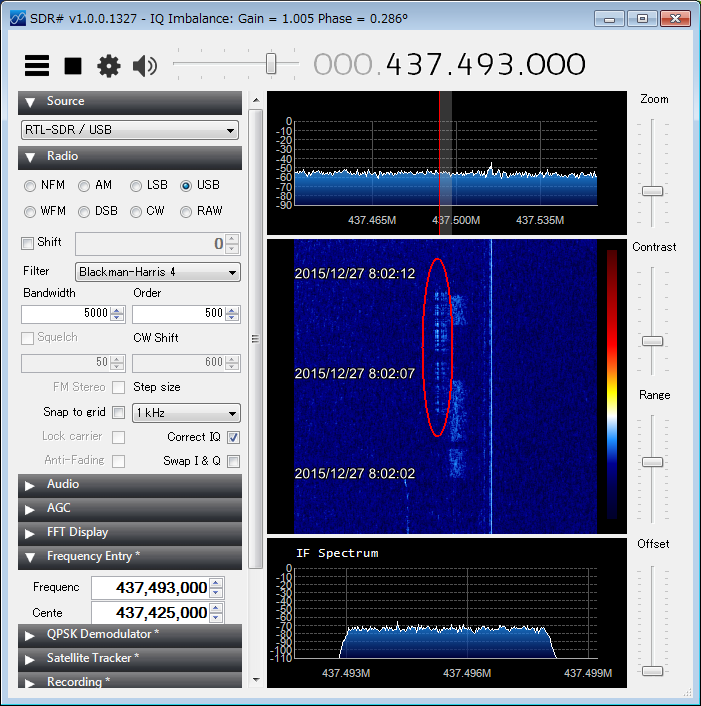

23:01-23:06 UTC, 26 Dec 2015, Ele 2.4 WS-S-SE, 437.485MHz

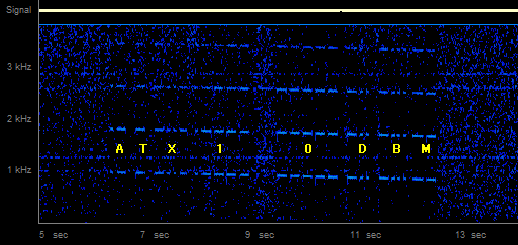

I heard and decoded Athenoxat-1 CW using the corrected TLE.



http://www.micro-space.org/
http://www.nasaspaceflight.com/2015/12/indian-pslv-six-singaporean-satellites/
http://www.spaceflightinsider.com/organizations/isro/indias-pslv-rocket-launch-six-singapore-satellites/
http://www.dropbox.com/s/un7fiwiwej0s2r3/51227atx.wav?dl=0

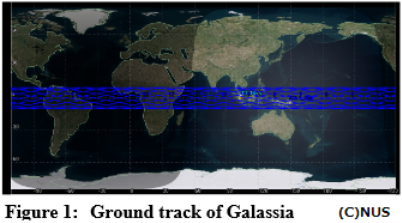

Galassia
National University of Singapore
Bus: 2U Cubesat
Uplink: 436.400 MHz
Downlink: 144.200/145.000/145.800 MHz, 9600bps GMSK

It is a 3.4 kg 2U-Cubeseat that carries two payloads and one measures the total
electron count in the ionosphere above Singapore and the other is a Small Photon
Entangling Quantum System to acquire quantum correlation data in space.



http://spaceflight101.com/pslv-c29/galassia/
http://www.sarc.eee.ntu.edu.sg/NewsnEvents/Documents/GCH.pdf
http://directory.eoportal.org/web/eoportal/satellite-missions/g/galassia
http://digitalcommons.usu.edu/cgi/viewcontent.cgi?article=3089&context=smallsat


VELOX-2
Nanyang Technological University, Singapore
Bus: 6U, 120mm x 246mm x 340.5mm
Downlink: 145.930MHz 1200bps BPSK, CW

(C)NTU

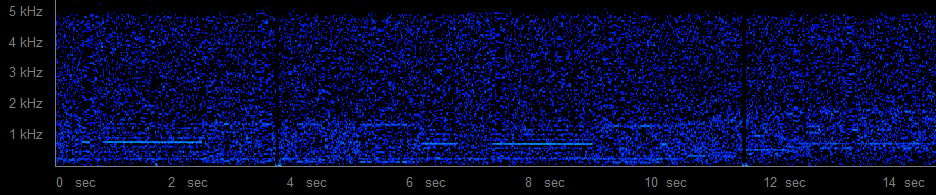

VELOX-2 BPSK heard finally, 41171U 15077F
13:31-13:37 UTC, 13 Jan 2016, Ele 2.6 WS-S-SE, 145.930MHz 1200bps BPSK
http://www.dropbox.com/s/l0hk2ofyt3m8z6e/60113ve3.wav?dl=0




VELOX-2 CW heard
13:21-13:27 UTC, 14 Jan 2016, Ele 2.6 WS-S-SE, 145.930MHz CW
http://www.dropbox.com/s/y8gai9m62nwr7zk/60114ve2.wav?dl=0
