DeorbitSail Launch


The new 3U satellite belonging to UK will be launched on 10 July 2015.

DeorbitSail Over Earth

(C)University of Surrey


A CAD rendition of the DeorbitSail satellite. The deployable sail will
increase the drag area of the satellite, rapidly deorbiting it to demise
in the atmosphere and removing it from the hazardous debris field in LEO.
DeorbitSail is currently awaiting launch from India in 2015.

The DeorbitSail project is a collaboration to build a 3U CubeSat sized
satellite with a deployable sail that will demonstrate rapid deorbiting.



(C)University of Surrey


DeorbitSail
The Surrey Space Centre, UK
Satellite Dimensions: 3U (10cmx10cmx34cm)
Sail Dimension: 4mx4m
Deorbit Time: Less than 180 days
Launch Station: Sriharikota Space Center, India
Launch Vehicle: PSLV C28
Launch Date & Time: 10 July 2015, 16:27UTC
Altitude: 600km
Orbit: Polar Sun-synchronous
Frequency: 145.975MHz, 1200bps BPSK

DEORBITSAIL
1 55554U 58056A   15191.72643157  .00000000  00000-0 +13828-4 0   335
2 55554  97.9842  81.0881 0007584 273.9578  86.0949 14.75593446209360

http://directory.eoportal.org/web/eoportal/satellite-missions/d/deorbitsail
http://www.isro.gov.in/launcher/pslv-c28-dmc3-mission
http://www.spaceflight101.com/deorbitsail.html


DeorbitSail packet

I could first decode one packet in real time in the first pass.
It has sent every 15 seconds. (using Move Telemetry Receiver)

00:00-00:13 UTC, 11 Jul 2015, Ele 48 SE-E-N, 145.975MHz 1200bps BPSK
[Sat Jul 11 09:07:53 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF B9 00 71 03 AC 07 1E 07 B4 01 3D 01 E1 00 6A 20 8E 00 40 04 73 00 03 00 02 00 05 00 0C 00 01 00 03 03 03


2015-032E
1 40719U 15032E   15191.95714567 -.00000052  00000-0  00000+0 0  9990
2 40719  98.0489  81.0918 0016084 253.8461 250.3473 14.74599142    39

13:31-13:43 UTC, 11 Jul 2015, Ele 49 N-W-WS, 145.975MHz 1200bps BPSK

[Sat Jul 11 22:36:23 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF B9 00 8E 03 33 06 B9 02 76 00 65 03 00 00 73 20 9A 00 40 04 7F 00 03 00 02 00 03 00 0C 00 01 00 09 09 08

[Sat Jul 11 22:37:08 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF 88 00 98 3B

[Sat Jul 11 22:37:38 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF B9 00 A4 01 08 02 5C 01 4A 00 18 00 00 00 44 20 00 00 40 04 73 00 03 00 02 00 03 00 0C 00 01 00 08 09 08

[Sat Jul 11 22:38:23 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF 88 00 E3 3B

[Sat Jul 11 22:38:38 JST 2015]
FM: DOS   -0	TO: SSC   -0
FF B8 00 B9 01 62 01 03 00 03 00 00 00 10 01 5F 02 5F

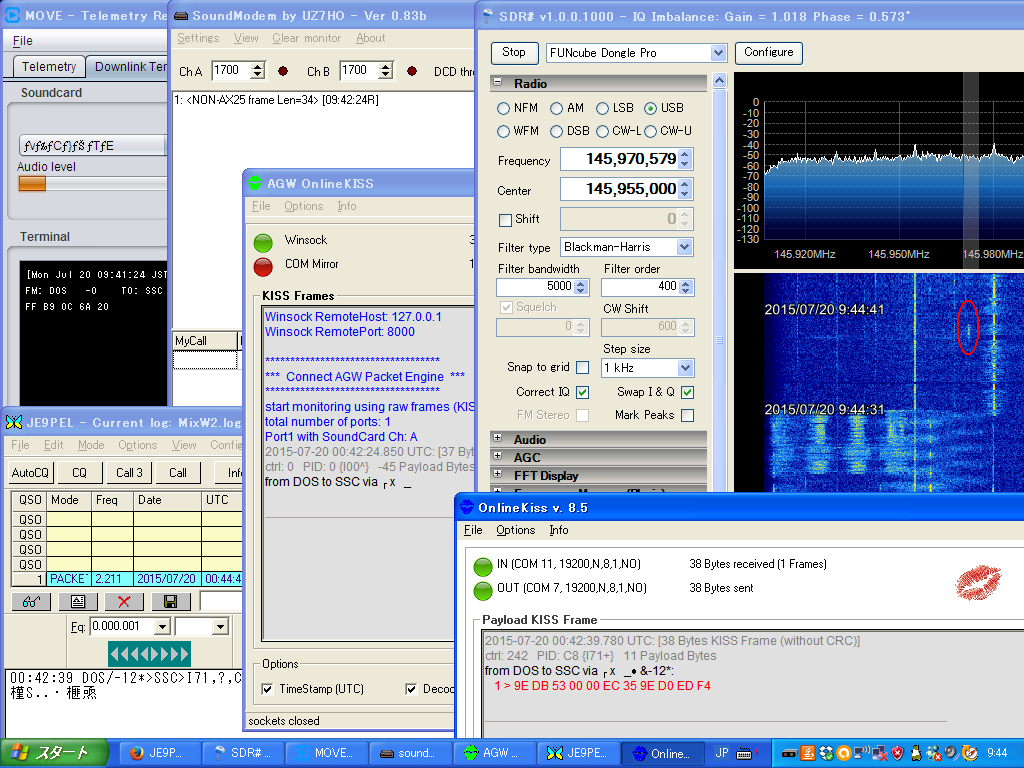

How to decode - DeorbitSail by DK3WN http://www.dk3wn.info/p/?p=61666 DeorbitSail telemetry 00:36-00:49 UTC, 20 Jul 2015, Ele 62 S-W-WN, 145.975MHz 1200bps BPSK SDR#, Move Receiver, Soundmodem + AGWonlineKiss, MixW + OnlineKissPlus
