Akubi Lightweight Railway
Bentengaoka Short Line

Track plan

(construction history and plan)

**Go Back**
Last update:Jul.12, 2009

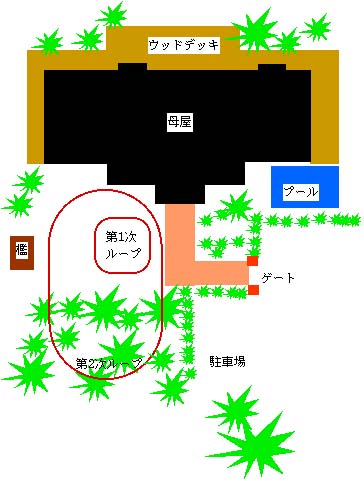

2001

Red line: track
Small loop: about 12m in circuit, R=1m(May, 2001)
Large loop: about 32m in circuit, R=4m(Oct, 2001)

Black: house
Yellow ocher: wooddeck(west, north and east)
brown: old shed(cage of dog)
Blue: pool

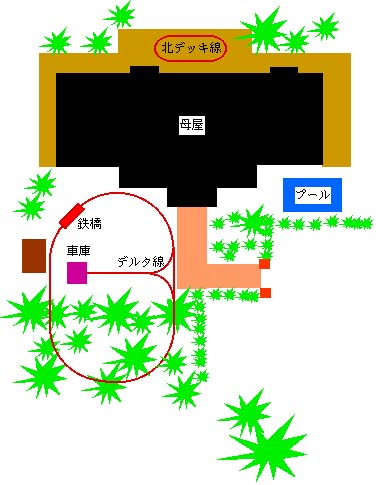

2001-2002

Large loop: about 34m in circuit(small change of track), R=4m(Apr. 2001)

Delta line and sidetrack with three points. where R=2m.

Northern deck short line (very small loop): about 9m in circuit, R=1m(Aug, 2002)

Purple: engine shed
Red: truss bridge

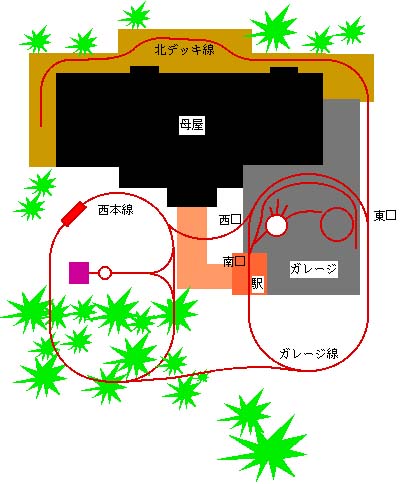

2003

Large loop(west garden line): about 34m in circuit, R=4m(Apr. 2001)

Small turntable at sidetrack

Large loop(east garage line): about 38m in circuit, R=4m(Mar. 2003)

Sidetracks with large turntable in garage

Northern deck line (under construction): R=3m(Apr, 2003)

Gray: new garage
Orange: station

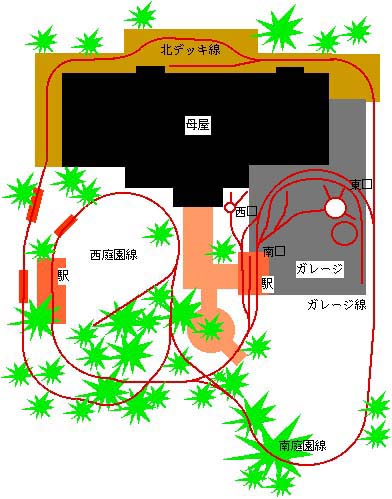

2004

Main line: about 150m , R=4m

Sidetrack: about 20m

Red: bridge
Orange: station

2008

Main line: about 150m , R=4m

Sidetrack: about 30m

Bule line: 45mm&32mm gauge line
