No. | Name / Maker | Model No. / Year | Quantity | Remarks | Image |
1 | LPI exposure machine / Orc | HMW-680GX
99 | 1 | | |
2 | LPI exposure machine / Orc | HMW-680GX
99 | 1 | | |
3 | Dryfilm exposure machine / Orc | HMW-201GX
99 | 1 | | |

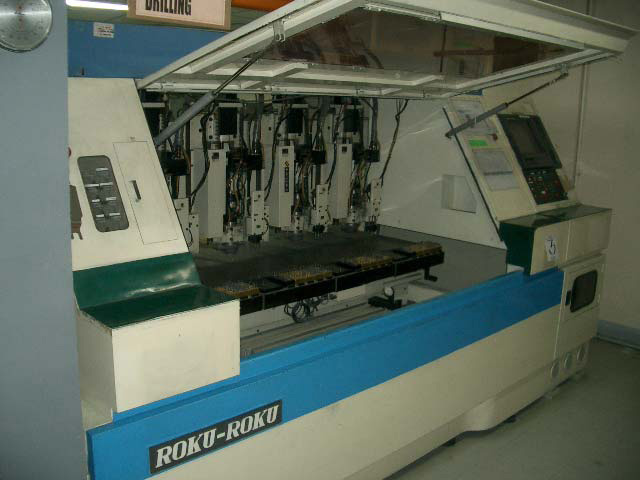

4 | CNC drilling machine / ROKU-ROKU SANGYO | RPD5-21-D
90 | 1 | 4 spindles 20kw 200V |
|

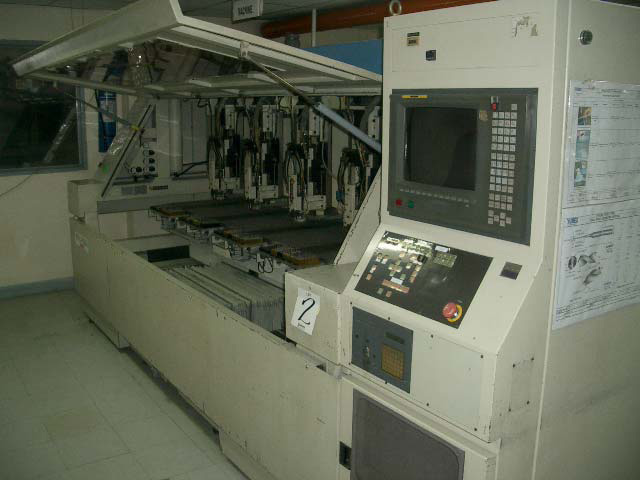

5 | CNC drilling machine / ROKU-ROKU SANGYO | RPD4-16-D/AWB
93 | 1 | 5 spindles 20kw 200V |
|
6 | Deburring Line / Fujikiko | | 1 | Buff polishing anf high-pressure Washing | |
7 | Copper Electroless Plating Line / Process Automation Int |
00
| 1 | Automatic Desmear | |
8 | Copper Electroplating Line / Process Automation Int |
97
| 1 | Automatic, Cupric Sulfate Plating | |
9 | Surface Treatment Line(Rigid) / Fujikiko |
89
| 1 | Buff polishing and Soft etching | |
10 | Automatic cut sheet Laminator / Morton Thikol | CSL 1500B
89 | 1 | Pressure and heat of Rubber Roll | |
11 | Exposure Mahcine / Orc | HMW-201GX-2
88 | 1 | Double sides (Lamp:5kw Super high pressure mercury vapor | |
12 | Development, Etching, Stripping Line / Tokyo kakouki | PP-MA-009
98 | 1 | Cupric Chloride Etchant | |
13 | Surface Treatment Line / Fujikikou | | 1 | Acid Cleaning and Buff polishing | |
14 | Screen Priinting Machine / Tokai seiki | SA-PC750A
84 | 1 | | |
15 | Screen Priinting Machine / Tokai seiki | SSA-PC605A
88 | 1 | | |
16 | Exposure Mahcine / Orc | HMW-680GW
88 | 1 | DOuble sides(Lamp:7kw) | |
17 | Exposure Mahcine / Orc | HMW-680C-2
88 | 1 | DOuble sides(Lamp:7kw) | |
18 | Punching Press machine 60 / AMADA | (TORC-PAC60)
77 | 1 | 60tons | |
19 | Copper Thickness Measuring Instrument / Densoku | RST-231
04 | 1 | Measurement Theory : Electric Resistance | |

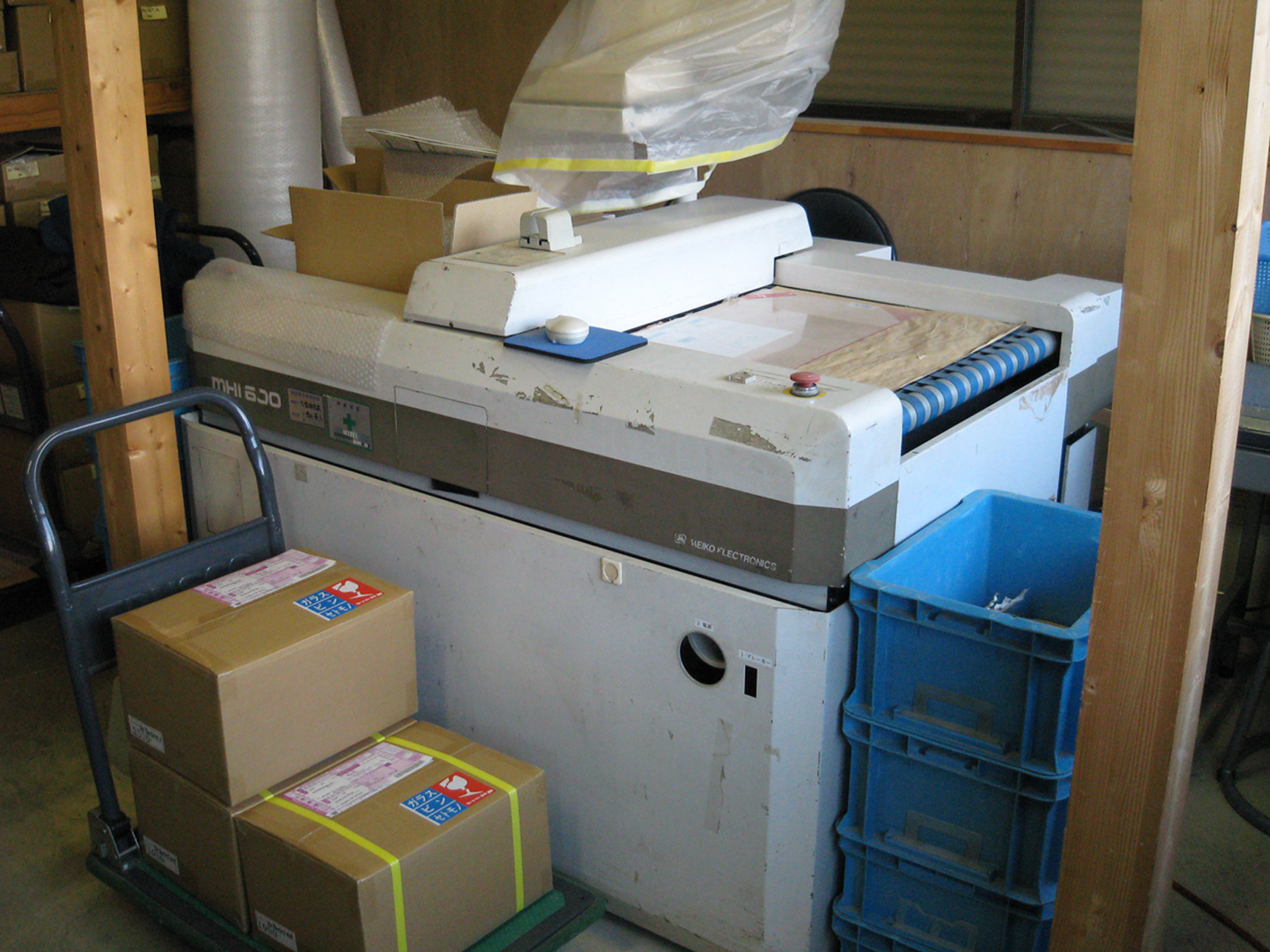

20 | Hole Cheker / Meiko | MH600
| 1 | |
|
21 | Etching Machine / KInzoku Kagaku |
| 1 | | |
22 | Clean Room / Apiste |
| 1 | | |
23 | Developing Machine / Yako | | 1 | | |
24 | 2 Spindle Type Debbaring Machine / Kinzoku Kagaku | | 1 | | |
25 | 4 Spindle Type Debbaring Machine / Kinzoku Kagaku | | 1 | | |
26 | Belt Type Debbaring Machine / | | 1 | | |
27 | Drying Oven / | | 1 | | |
28 | Packing Machine / | | 1 | | |
29 | Squeeze Grinder / | | 1 | | |
30 | Exhaust Gas Scrubber / | | 1 | | |
31 | CNC Drilling Machine / Takeuchi | ND2TZ II | 1 | | |
32 | CNC Drilling & Routing Machine / Takeuchi | NDR2TZ | 1 | | |
33 | Resist Stripping Machine / Kinzoku Kagaku | | 1 | | |
34 | Exposure Machine / Hitech | HTE5000 | 1 | | |
35 | Exposure Machine / Orc | HMW201B | 1 | | |
36 | UV Curing Machine / Orc | QRM2300 | 1 | | |
37 | V-Scoring Machine / Shoda | SVS400C | 1 | | |
