Focused ion beam direct deposition

and its applications



3. Properties of direct deposited films

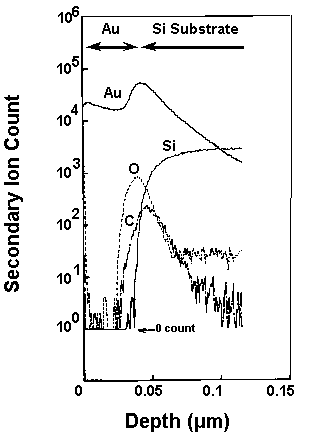

Measurement of purity by SIMS

(54 eV Au+ on Si) impurity < 100 ppm



Resistivity of direct deposited Au, Cu and Al films

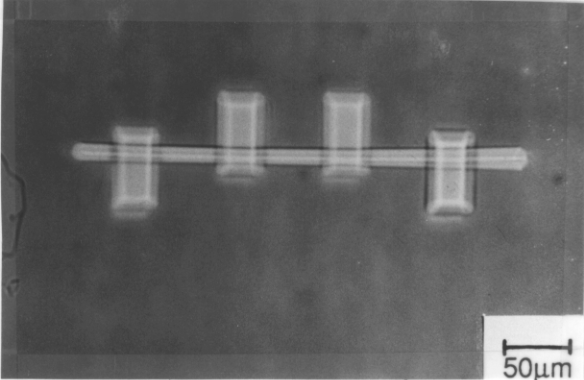

Photograph of fabricated sample

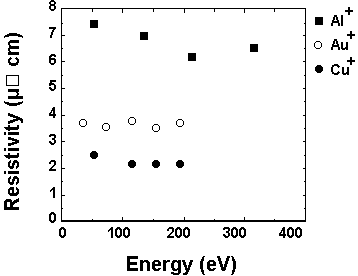

Measured resistivity of direct deposited Au, Cu and Al as a function of energy



Critical temperature of direct deposited Nb film

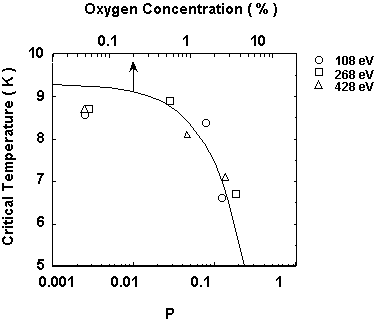

Measured critical temperature of direct deposited Nb

P : Expected impurity concentration (assuming SH20=1.0)

Solid line : Published relation between critical temperature and oxygen concentration

SH2O=0.2

Structure of direct deposited Au film

TEM image of direct deposited Au film (54 eV Au+ on Si)
