Focused ion beam direct deposition

and its applications



1.Principle of FIB direct deposition



What is FIBDD?

Focused Ion Beam Direct Deposition(FIBDD)

= Focused Ion Beam (FIB)+ Ion Beam Deposition (IBD)



What can be expected?



1. Maskless, damage-free, clean process

2. High purity of deposited film

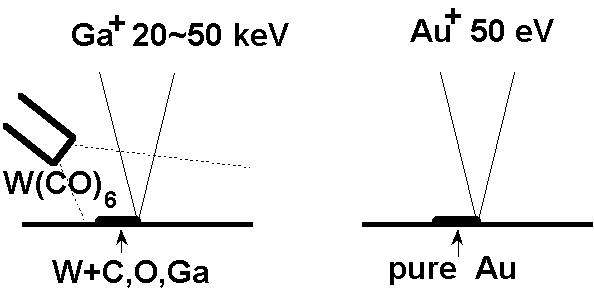

Compare to FIB Induced Deposition



        FIBID                FIBDD



Low purity(High Resistivity) High purity(Low Resistivity)

Pollution by Gas        ⇔ No Pollution

Damage              ⇔ Damage Free

Easy Positioning         ⇔ Complicated Positioning

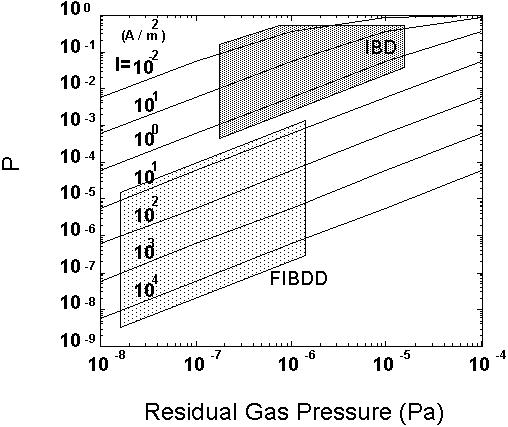

Expected purity of deposited film



Expected impurity concentration : P

Y : deposition rate of residual gas / metal film

J : flux density of residual gas / metal ion

S : sticking probability of residual gas / metal ion

P=Yres.gas / (Yres.gas + Ymetal)

 =Jres.gas X Sres.gas / (Jres.gas X Sres.gas + Jmetal X Smetal)
