Sukhoi Su-57
Download
Su-57Drawing(pdf version)

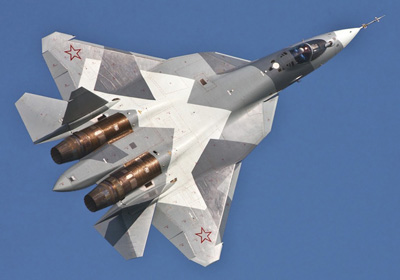

The motility is united with stealth by Russian 5th generation
multirole strike fighter, and it's said that Sukhoi Su-57 equals
American F-22. The plan type of a wing is also really similar to
F-22, but engine layout resembles Su-27 and leaves the influence,
and is arranged. A pilot model made the first flight in 2010 and was
called PAK FA, and was made, the regulation name is Su-57 in August,
2017, it was announced. It's said that authentic deployment starts
from around 2020, but they seem late little. (By Wikipedia) the
state of the flight is displayed that I search in You Tube in

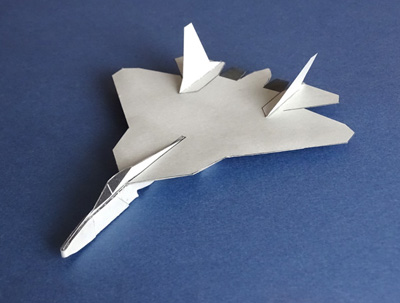

plenty. The plane type of Su-57 is reproduced faithfully mostly, but
this paper airplane becomes stable and well flies. When it's
adjusted well, they seem to do vertical ascent (When I send up
vertically mostly by a rubber catapult, I rise, shift to a level
flight in the sky and glide just as it is.) The air intake opened in
characteristic rhombus was reproduced under the wing. A
paper-cutting airplane of Su-57 isn't found in the area for which I
searched, and (There is a folding paper airplane, but.) I think this
is the first well flying Su-57 paper airplane in the world.
Way of making Su-57
A downloaded drawing is printed in a A4 card stock. Other models
consult how to make, too, please.
A part is cut down from a pattern along a thick line. First I enter
making of a body. Dotted lines and dashed lines are a mountain
collapse and a valley bend line respectively, so please hit a ruler
beforehand before pasting and bend. Cockpit (cockpit) partial 1 is
inserted inside the body and it's glued together together with a
nose of a plane point. 6 or cover 7 of a nose of a plane is stuck so
that I may cover a nose of a plane. A catapult hook is clipped. An
air intake of an engine (air intake) breaks a valley and pastes
together according to the line of light rhombus. A wing and a body
are stuck so that a back end may be identical (The engine nozzle is
also identical.) A vertical tail is installed according to the thin
line according to inside the horizontal tail plane and the back end
in left and right in the body rear and it's tilted 25 degrees
outside of the vertical (7.7 cm of point of a vertical tail in left
and right gets away.) A dihedral angle of a main plane does while
being level 0 °. The whole horizontal tail plane is bent to look up
negligibly so that it may be parallel with a curved line of a tab
for sticking of a body from behind the main plane and an attaching
portion of a vertical tail. I'm designing as even if a sinker isn't
put in, the center of gravity is just as it is, and it may fit.
Completion
Whether how to be twisted is impartial by small
training and influence makes sure of the bow-shaped
roundness (camper) to the top for a main plane. How to
make was described, but a vertical tail is tilted 25degrees
outside of the vertical. A horizontal tail plane twists the
outside back end to the top a little. Washed out (To twist the
main plane leading-edge in the bottom outside and do the angle
of attack small.) is put a little outside the main plane. The
curvature radius is made a main plane camper outside small. A
horizontal tail plane back end is twisted a little for a pace
adjustment (adjustment of a level flight).
Please paint by lacquer thin in the whole to increase the water
resistance of the fuselage when skipping outdoors. You can coat
with clear sprayer lacquer uniformly thin, so it seems good. I
think I hope that you use color card stock of silver gray to
create the atmosphere of a military plane.
