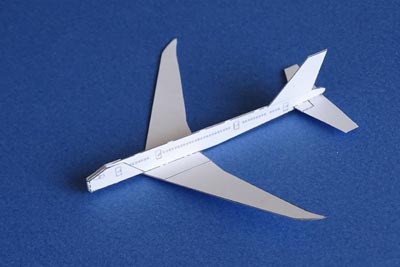

Boeing 787 dream liner is a passenger plane in designed new
generation, targeting using a compound material of carbon fiver for
a main wing and a body, giving fuel efficiency by weight saving of a
fuselage and reducing the movement cost along with simplification of
maintenance. The cruising range also improves in fuel efficiency's
rising, and though it's a compact fuselage relatively, you can also
enter service in a long-distance route. ANA ordered 50 planes first
in the world, and the development which (is called a customer of
early teens) decided. The usage rate of the compound material
reaches 50% by the weight ratio. An enterprise of our country also
participates in production of a main plane and a body Mitsubishi
Heavy Industries, Fuji Heavy Industries and Kawasaki Heavy
Industries. There is a feature of the compound material in the main
plane which finishes warping flying smoothly and the main plane end
where a curve is drawn. For improvement of air performance, this
paper airplane has made the width of the main plane and the area of
the tail assembly a little big compared with a production. Please
taste a flight of a graceful dream liner.
Way of making Boeing787
A downloaded drawing is printed in a A4 card stock.
A pdf file install Acrobat Reader, and indicate it, and please
print.
A part is cut down from a pattern along a thick line. Dotted lines
and dashed lines are a mountain collapse and a valley bend line
respectively, so please hit a ruler beforehand before pasting and
bend. First a reinforcement part is bent on the underside, and main
plane 1 is pasted together. A midsection is stuck so that
reinforcement Ina material g in left and right may pile up. About 5
times of dihedral angle is put at the center. Body reinforcement 2
is pasted together, it's pasted together inside body 4 as well as
vertical tail 3 and a body is made. Cover 7 of a nose of a plane is
stuck so that I may cover a nose of a plane. A catapult hook is
clipped. A white tab for sticking is bent and a horizontal tail
plane is stuck on a body. The center of gravity is just as it is,
and it may fit.
Completion
Whether how to be twisted is impartial by small training and
influence makes sure of the bow-shaped roundness (camper) to
the top for a main plane.
Please paint by lacquer thin in the whole to increase the water
resistance of the fuselage when skipping outdoors. You can coat with
clear sprayer lacquer uniformly thin, so it seems good.
